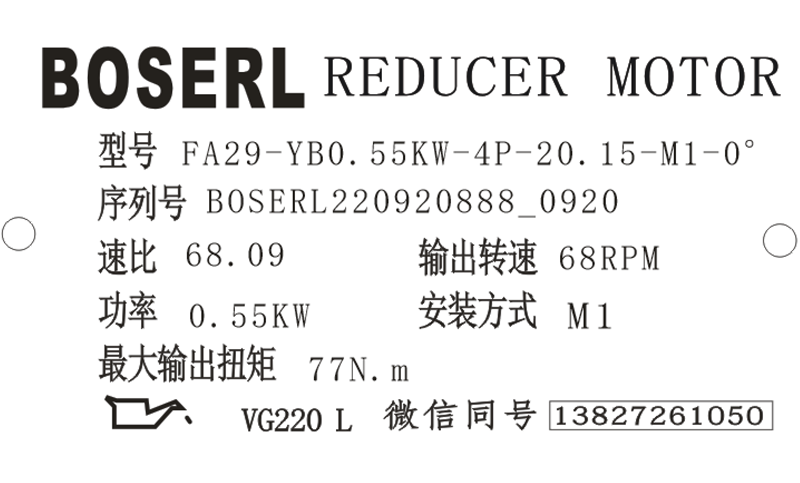

FA29減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FA29減速器選型樣本。

FA29-YB0.55KW-4P-8.13-M1-0°

FA：系列代號

29：減速機規格代號

YB：電機

0.55KW：電機功率

4P：電機級數

8.13：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

FA29減速器逆止器安裝：

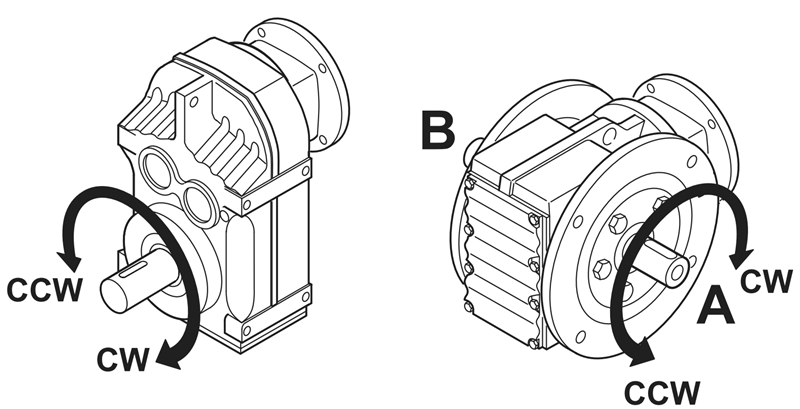

轉向要根據輸出軸（LSS）來確定；順時針旋轉（CW）；逆時針旋轉（CCW）；應在箱體上標識出許可轉向。平行軸斜齒輪減速機

逆止器用來避免逆向轉動；如此便可確保運行過程中的定向轉動。注意：逆向運轉可能導致逆止器損壞；電機不允許逆向轉動；注意供電是否正確，以確保電機定向轉動；可以使電機輸出一半的額定扭矩來檢查逆止器方向。

FA29減速器帶逆止器的輸入端裝置AD../RS：安裝或運送前檢查驅動裝置的旋轉方向是否正確，若轉向錯誤請與BOSERL公司客戶服務部聯系。在運行過程中，逆止器不需要特別維護或其他的維護措施。分體電機減速機

如果低于最小超越轉速，則逆止器將會發生摩擦而產生高溫，可能造成財產損失；在額外工作狀態下，不得低于最小超越轉速；在啟動或制動階段可以低于最小超越轉速。根據各自的尺寸規格，逆止器的最小超越轉速如下表：

FA29減速器潤滑油檢查：

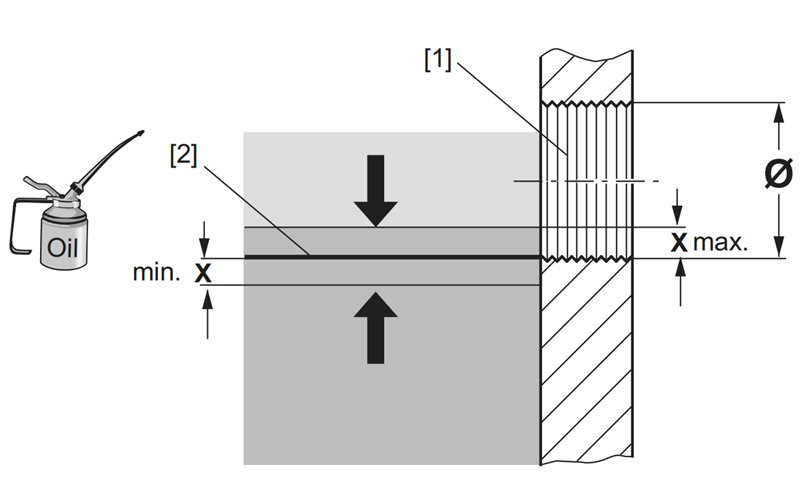

將一個容器置于油位檢查螺栓的下方；慢慢旋出油位檢查螺栓。由于最大許可注油高度超過了油位孔的下緣，因此在旋出螺栓時可能有少量油漏出；據下圖及相關表格檢查油位。

若油位過低則操作如下：旋入透氣螺栓；將同類潤滑油注入透氣孔直至油位檢查孔的下緣；重新旋入透氣螺塞。

重新旋入油位檢查螺栓，通過放油螺栓檢查油質。齒輪減速電機

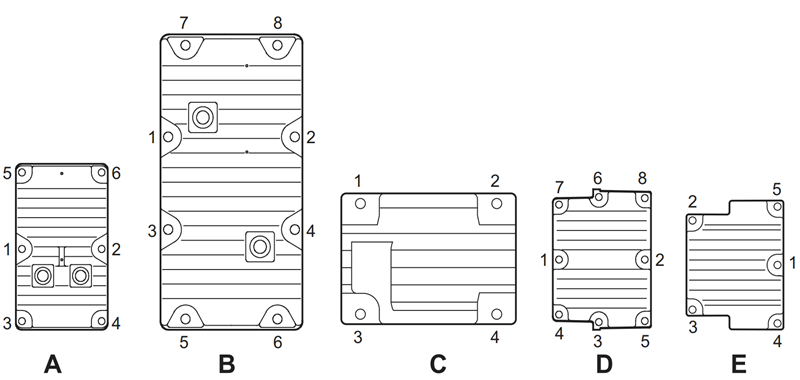

重新裝上安裝蓋，根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

FA29減速器型號：

FA29-Y0.12KW，F(xiàn)A29-Y0.18KW，F(xiàn)A29-Y0.25KW，F(xiàn)A29-Y0.37KW，F(xiàn)A29-Y0.55KW，F(xiàn)A29-Y0.75KW，F(xiàn)A29-Y1.1KW，F(xiàn)A29-Y1.5KW，F(xiàn)A29-Y2.2KW，F(xiàn)A29-Y3KW，F(xiàn)A29-YB100M4，F(xiàn)A29-YB63M4，F(xiàn)A29-YB71M4，F(xiàn)A29-YB80M4，F(xiàn)A29-YB90M4，F(xiàn)A29-YDP100M4，F(xiàn)A29-YDP63M4，F(xiàn)A29-YDP71M4，F(xiàn)A29-YDP80M4，F(xiàn)A29-YDP90M4，F(xiàn)A29-YE100M4，F(xiàn)A29-YE63M4，F(xiàn)A29-YE71M4，F(xiàn)A29-YE80M4，F(xiàn)A29-YE90M4，F(xiàn)A29-YEJ100M4，F(xiàn)A29-YEJ63M4，F(xiàn)A29-YEJ71M4，F(xiàn)A29-YEJ80M4，F(xiàn)A29-YEJ90M4，F(xiàn)A29-YEJB100M4，F(xiàn)A29-YEJB63M4，F(xiàn)A29-YEJB71M4，F(xiàn)A29-YEJB80M4，F(xiàn)A29-YEJB90M4，F(xiàn)A29-YP100M4，F(xiàn)A29-YP63M4，F(xiàn)A29-YP71M4，F(xiàn)A29-YP80M4，F(xiàn)A29-YP90M4，F(xiàn)A29-YPB100M4，F(xiàn)A29-YPB63M4，F(xiàn)A29-YPB71M4，F(xiàn)A29-YPB80M4，F(xiàn)A29-YPB90M4，F(xiàn)A29-YPE100M4，F(xiàn)A29-YPE63M4，F(xiàn)A29-YPE71M4，F(xiàn)A29-YPE80M4，F(xiàn)A29-YPE90M4，F(xiàn)A29-YS100M4，F(xiàn)A29-YS63M4，F(xiàn)A29-YS71M4，F(xiàn)A29-YS80M4，F(xiàn)A29-YS90M4，F(xiàn)A29-YVB100M4，F(xiàn)A29-YVB63M4，F(xiàn)A29-YVB71M4，F(xiàn)A29-YVB80M4，F(xiàn)A29-YVB90M4，F(xiàn)A29-YVP100M4，F(xiàn)A29-YVP63M4，F(xiàn)A29-YVP71M4，F(xiàn)A29-YVP80M4，F(xiàn)A29-YVP90M4，F(xiàn)A29-YVPEJ100M4，F(xiàn)A29-YVPEJ63M4，F(xiàn)A29-YVPEJ71M4，F(xiàn)A29-YVPEJ80M4，F(xiàn)A29-YVPEJ90M4，F(xiàn)A29-Y63M4，F(xiàn)A29-Y71M4，F(xiàn)A29-Y80M4，F(xiàn)A29-Y90M4，F(xiàn)A29-Y100M4，JCFA27-Y0.12KW，JCFA27-Y0.18KW，JCFA27-Y0.25KW，JCFA27-Y0.37KW，JCFA27-Y0.55KW，JCFA27-Y0.75KW，JCFA27-Y1.1KW，JCFA27-Y1.5KW，JCFA27-Y2.2KW，JCFA27-Y3KW，JCFA27-YB100M4，JCFA27-YB63M4，JCFA27-YB71M4，JCFA27-YB80M4，JCFA27-YB90M4，JCFA27-YDP100M4，JCFA27-YDP63M4，JCFA27-YDP71M4，JCFA27-YDP80M4，JCFA27-YDP90M4，JCFA27-YE100M4，JCFA27-YE63M4，JCFA27-YE71M4，JCFA27-YE80M4，JCFA27-YE90M4，JCFA27-YEJ100M4，JCFA27-YEJ63M4，JCFA27-YEJ71M4，JCFA27-YEJ80M4，JCFA27-YEJ90M4，JCFA27-YEJB100M4，JCFA27-YEJB63M4，JCFA27-YEJB71M4，JCFA27-YEJB80M4，JCFA27-YEJB90M4，JCFA27-YP100M4，JCFA27-YP63M4，JCFA27-YP71M4，JCFA27-YP80M4，JCFA27-YP90M4，JCFA27-YPB100M4，JCFA27-YPB63M4，JCFA27-YPB71M4，JCFA27-YPB80M4，JCFA27-YPB90M4，JCFA27-YPE100M4，JCFA27-YPE63M4，JCFA27-YPE71M4，JCFA27-YPE80M4，JCFA27-YPE90M4，JCFA27-YS100M4，JCFA27-YS63M4，JCFA27-YS71M4，JCFA27-YS80M4，JCFA27-YS90M4，JCFA27-YVB100M4，JCFA27-YVB63M4，JCFA27-YVB71M4，JCFA27-YVB80M4，JCFA27-YVB90M4，JCFA27-YVP100M4，JCFA27-YVP63M4，JCFA27-YVP71M4，JCFA27-YVP80M4，JCFA27-YVP90M4，JCFA27-YVPEJ100M4，JCFA27-YVPEJ63M4，JCFA27-YVPEJ71M4，JCFA27-YVPEJ80M4，JCFA27-YVPEJ90M4，JCFA27-Y63M4，JCFA27-Y71M4，JCFA27-Y80M4，JCFA27-Y90M4，JCFA27-Y100M4，XDFA27-Y0.12KW，XDFA27-Y0.18KW，XDFA27-Y0.25KW，XDFA27-Y0.37KW，XDFA27-Y0.55KW，XDFA27-Y0.75KW，XDFA27-Y1.1KW，XDFA27-Y1.5KW，XDFA27-Y2.2KW，XDFA27-Y3KW，XDFA27-YB100M4，XDFA27-YB63M4，XDFA27-YB71M4，XDFA27-YB80M4，XDFA27-YB90M4，XDFA27-YDP100M4，XDFA27-YDP63M4，XDFA27-YDP71M4，XDFA27-YDP80M4，XDFA27-YDP90M4，XDFA27-YE100M4，XDFA27-YE63M4，XDFA27-YE71M4，XDFA27-YE80M4，XDFA27-YE90M4，XDFA27-YEJ100M4，XDFA27-YEJ63M4，XDFA27-YEJ71M4，XDFA27-YEJ80M4，XDFA27-YEJ90M4，XDFA27-YEJB100M4，XDFA27-YEJB63M4，XDFA27-YEJB71M4，XDFA27-YEJB80M4，XDFA27-YEJB90M4，XDFA27-YP100M4，XDFA27-YP63M4，XDFA27-YP71M4，XDFA27-YP80M4，XDFA27-YP90M4，XDFA27-YPB100M4，XDFA27-YPB63M4，XDFA27-YPB71M4，XDFA27-YPB80M4，XDFA27-YPB90M4，XDFA27-YPE100M4，XDFA27-YPE63M4，XDFA27-YPE71M4，XDFA27-YPE80M4，XDFA27-YPE90M4，XDFA27-YS100M4，XDFA27-YS63M4，XDFA27-YS71M4，XDFA27-YS80M4，XDFA27-YS90M4，XDFA27-YVB100M4，XDFA27-YVB63M4，XDFA27-YVB71M4，XDFA27-YVB80M4，XDFA27-YVB90M4，XDFA27-YVP100M4，XDFA27-YVP63M4，XDFA27-YVP71M4，XDFA27-YVP80M4，XDFA27-YVP90M4，XDFA27-YVPEJ100M4，XDFA27-YVPEJ63M4，XDFA27-YVPEJ71M4，XDFA27-YVPEJ80M4，XDFA27-YVPEJ90M4，XDFA27-Y63M4，XDFA27-Y71M4，XDFA27-Y80M4，XDFA27-Y90M4，XDFA27-Y100M4，F(xiàn)WA27-Y0.12KW，F(xiàn)WA27-Y0.18KW，F(xiàn)WA27-Y0.25KW，F(xiàn)WA27-Y0.37KW，F(xiàn)WA27-Y0.55KW，F(xiàn)WA27-Y0.75KW，F(xiàn)WA27-Y1.1KW，F(xiàn)WA27-Y1.5KW，F(xiàn)WA27-Y2.2KW，F(xiàn)WA27-Y3KW，F(xiàn)WA27-YB100M4，F(xiàn)WA27-YB63M4，F(xiàn)WA27-YB71M4，F(xiàn)WA27-YB80M4，F(xiàn)WA27-YB90M4，F(xiàn)WA27-YDP100M4，F(xiàn)WA27-YDP63M4，F(xiàn)WA27-YDP71M4，F(xiàn)WA27-YDP80M4，F(xiàn)WA27-YDP90M4，F(xiàn)WA27-YE100M4，F(xiàn)WA27-YE63M4，F(xiàn)WA27-YE71M4，F(xiàn)WA27-YE80M4，F(xiàn)WA27-YE90M4，F(xiàn)WA27-YEJ100M4，F(xiàn)WA27-YEJ63M4，F(xiàn)WA27-YEJ71M4，F(xiàn)WA27-YEJ80M4，F(xiàn)WA27-YEJ90M4，F(xiàn)WA27-YEJB100M4，F(xiàn)WA27-YEJB63M4，F(xiàn)WA27-YEJB71M4，F(xiàn)WA27-YEJB80M4，F(xiàn)WA27-YEJB90M4，F(xiàn)WA27-YP100M4，F(xiàn)WA27-YP63M4，F(xiàn)WA27-YP71M4，F(xiàn)WA27-YP80M4，F(xiàn)WA27-YP90M4，F(xiàn)WA27-YPB100M4，F(xiàn)WA27-YPB63M4，F(xiàn)WA27-YPB71M4，F(xiàn)WA27-YPB80M4，F(xiàn)WA27-YPB90M4，F(xiàn)WA27-YPE100M4，F(xiàn)WA27-YPE63M4，F(xiàn)WA27-YPE71M4，F(xiàn)WA27-YPE80M4，F(xiàn)WA27-YPE90M4，F(xiàn)WA27-YS100M4，F(xiàn)WA27-YS63M4，F(xiàn)WA27-YS71M4，F(xiàn)WA27-YS80M4，F(xiàn)WA27-YS90M4，F(xiàn)WA27-YVB100M4，F(xiàn)WA27-YVB63M4，F(xiàn)WA27-YVB71M4，F(xiàn)WA27-YVB80M4，F(xiàn)WA27-YVB90M4，F(xiàn)WA27-YVP100M4，F(xiàn)WA27-YVP63M4，F(xiàn)WA27-YVP71M4，F(xiàn)WA27-YVP80M4，F(xiàn)WA27-YVP90M4，F(xiàn)WA27-YVPEJ100M4，F(xiàn)WA27-YVPEJ63M4，F(xiàn)WA27-YVPEJ71M4，F(xiàn)WA27-YVPEJ80M4，F(xiàn)WA27-YVPEJ90M4，F(xiàn)WA27-Y63M4，F(xiàn)WA27-Y71M4，F(xiàn)WA27-Y80M4，F(xiàn)WA27-Y90M4，F(xiàn)WA27-Y100M4，YQFA27-Y0.12KW，YQFA27-Y0.18KW，YQFA27-Y0.25KW，YQFA27-Y0.37KW，YQFA27-Y0.55KW，YQFA27-Y0.75KW，YQFA27-Y1.1KW，YQFA27-Y1.5KW，YQFA27-Y2.2KW，YQFA27-Y3KW，YQFA27-YB100M4，YQFA27-YB63M4，YQFA27-YB71M4，YQFA27-YB80M4，YQFA27-YB90M4，YQFA27-YDP100M4，YQFA27-YDP63M4，YQFA27-YDP71M4，YQFA27-YDP80M4，YQFA27-YDP90M4，YQFA27-YE100M4，YQFA27-YE63M4，YQFA27-YE71M4，YQFA27-YE80M4，YQFA27-YE90M4，YQFA27-YEJ100M4，YQFA27-YEJ63M4，YQFA27-YEJ71M4，YQFA27-YEJ80M4，YQFA27-YEJ90M4，YQFA27-YEJB100M4，YQFA27-YEJB63M4，YQFA27-YEJB71M4，YQFA27-YEJB80M4，YQFA27-YEJB90M4，YQFA27-YP100M4，YQFA27-YP63M4，YQFA27-YP71M4，YQFA27-YP80M4，YQFA27-YP90M4，YQFA27-YPB100M4，YQFA27-YPB63M4，YQFA27-YPB71M4，YQFA27-YPB80M4，YQFA27-YPB90M4，YQFA27-YPE100M4，YQFA27-YPE63M4，YQFA27-YPE71M4，YQFA27-YPE80M4，YQFA27-YPE90M4，YQFA27-YS100M4，YQFA27-YS63M4，YQFA27-YS71M4，YQFA27-YS80M4，YQFA27-YS90M4，YQFA27-YVB100M4，YQFA27-YVB63M4，YQFA27-YVB71M4，YQFA27-YVB80M4，YQFA27-YVB90M4，YQFA27-YVP100M4，YQFA27-YVP63M4，YQFA27-YVP71M4，YQFA27-YVP80M4，YQFA27-YVP90M4，YQFA27-YVPEJ100M4，YQFA27-YVPEJ63M4，YQFA27-YVPEJ71M4，YQFA27-YVPEJ80M4，YQFA27-YVPEJ90M4，YQFA27-Y63M4，YQFA27-Y71M4，YQFA27-Y80M4，YQFA27-Y90M4，YQFA27-Y100M4，F(xiàn)A27SF80，F(xiàn)A27SF90，F(xiàn)A27SF100，F(xiàn)A27SF112，F(xiàn)A27SF115，F(xiàn)A27SF140，F(xiàn)A27SF160，F(xiàn)A27SF190。

FA29減速器生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jsshenhu.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F29減速機
