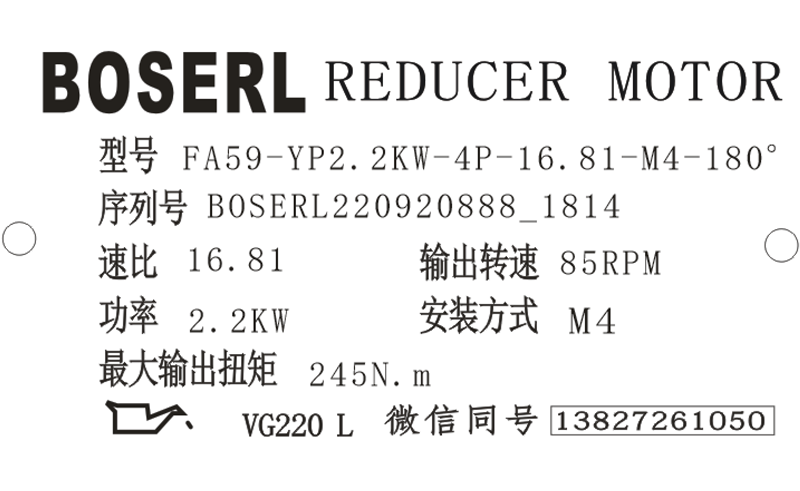

FA59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F59減速機選型樣本。

FA59-YP2.2KW-4P-16.81-M4-180°

FA：系列代號

59：減速機規格代號

YP：電機

2.2KW：電機功率

4P：電機級數

16.81：減速機傳動比

M4：減速機安裝位置

180°：接線盒位置

FA59減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA59減速機的扭力臂安裝示意圖：齒輪減速電機

FA59減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA59減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA59減速機型號：

WFA57-Y0.12KW，WFA57-Y0.18KW，WFA57-Y0.25KW，WFA57-Y0.37KW，WFA57-Y0.55KW，WFA57-Y0.75KW，WFA57-Y1.1KW，WFA57-Y1.5KW，WFA57-Y100M4，WFA57-Y112M4，WFA57-Y132M4，WFA57-Y2.2KW，WFA57-Y3KW，WFA57-Y4KW，WFA57-Y5.5KW，WFA57-Y63M4，WFA57-Y71M4，WFA57-Y80M4，WFA57-Y90M4，WFA57-YB100M4，WFA57-YB112M4，WFA57-YB132M4，WFA57-YB63M4，WFA57-YB71M4，WFA57-YB80M4，WFA57-YB90M4，WFA57-YDP100M4，WFA57-YDP112M4，WFA57-YDP132M4，WFA57-YDP63M4，WFA57-YDP71M4，WFA57-YDP80M4，WFA57-YDP90M4，WFA57-YE100M4，WFA57-YE112M4，WFA57-YE132M4，WFA57-YE63M4，WFA57-YE71M4，WFA57-YE80M4，WFA57-YE90M4，WFA57-YEJ100M4，WFA57-YEJ112M4，WFA57-YEJ132M4，WFA57-YEJ63M4，WFA57-YEJ71M4，WFA57-YEJ80M4，WFA57-YEJ90M4，WFA57-YEJB100M4，WFA57-YEJB112M4，WFA57-YEJB132M4，WFA57-YEJB63M4，WFA57-YEJB71M4，WFA57-YEJB80M4，WFA57-YEJB90M4，WFA57-YP100M4，WFA57-YP112M4，WFA57-YP132M4，WFA57-YP63M4，WFA57-YP71M4，WFA57-YP80M4，WFA57-YP90M4，WFA57-YPB100M4，WFA57-YPB112M4，WFA57-YPB132M4，WFA57-YPB63M4，WFA57-YPB71M4，WFA57-YPB80M4，WFA57-YPB90M4，WFA57-YPE100M4，WFA57-YPE112M4，WFA57-YPE132M4，WFA57-YPE63M4，WFA57-YPE71M4，WFA57-YPE80M4，WFA57-YPE90M4，WFA57-YS100M4，WFA57-YS112M4，WFA57-YS132M4，WFA57-YS63M4，WFA57-YS71M4，WFA57-YS80M4，WFA57-YS90M4，WFA57-YVB100M4，WFA57-YVB112M4，WFA57-YVB132M4，WFA57-YVB63M4，WFA57-YVB71M4，WFA57-YVB80M4，WFA57-YVB90M4，WFA57-YVP100M4，WFA57-YVP112M4，WFA57-YVP132M4，WFA57-YVP63M4，WFA57-YVP71M4，WFA57-YVP80M4，WFA57-YVP90M4，WFA57-YVPEJ100M4，WFA57-YVPEJ112M4，WFA57-YVPEJ132M4，WFA57-YVPEJ63M4，WFA57-YVPEJ71M4，WFA57-YVPEJ80M4，WFA57-YVPEJ90M4，NFA57-Y0.12KW，NFA57-Y0.18KW，NFA57-Y0.25KW，NFA57-Y0.37KW，NFA57-Y0.55KW，NFA57-Y0.75KW，NFA57-Y1.1KW，NFA57-Y1.5KW，NFA57-Y100M4，NFA57-Y112M4，NFA57-Y132M4，NFA57-Y2.2KW，NFA57-Y3KW，NFA57-Y4KW，NFA57-Y5.5KW，NFA57-Y63M4，NFA57-Y71M4，NFA57-Y80M4，NFA57-Y90M4，NFA57-YB100M4，NFA57-YB112M4，NFA57-YB132M4，NFA57-YB63M4，NFA57-YB71M4，NFA57-YB80M4，NFA57-YB90M4，NFA57-YDP100M4，NFA57-YDP112M4，NFA57-YDP132M4，NFA57-YDP63M4，NFA57-YDP71M4，NFA57-YDP80M4，NFA57-YDP90M4，NFA57-YE100M4，NFA57-YE112M4，NFA57-YE132M4，NFA57-YE63M4，NFA57-YE71M4，NFA57-YE80M4，NFA57-YE90M4，NFA57-YEJ100M4，NFA57-YEJ112M4，NFA57-YEJ132M4，NFA57-YEJ63M4，NFA57-YEJ71M4，NFA57-YEJ80M4，NFA57-YEJ90M4，NFA57-YEJB100M4，NFA57-YEJB112M4，NFA57-YEJB132M4，NFA57-YEJB63M4，NFA57-YEJB71M4，NFA57-YEJB80M4，NFA57-YEJB90M4，NFA57-YP100M4，NFA57-YP112M4，NFA57-YP132M4，NFA57-YP63M4，NFA57-YP71M4，NFA57-YP80M4，NFA57-YP90M4，NFA57-YPB100M4，NFA57-YPB112M4，NFA57-YPB132M4，NFA57-YPB63M4，NFA57-YPB71M4，NFA57-YPB80M4，NFA57-YPB90M4，NFA57-YPE100M4，NFA57-YPE112M4，NFA57-YPE132M4，NFA57-YPE63M4，NFA57-YPE71M4，NFA57-YPE80M4，NFA57-YPE90M4，NFA57-YS100M4，NFA57-YS112M4，NFA57-YS132M4，NFA57-YS63M4，NFA57-YS71M4，NFA57-YS80M4，NFA57-YS90M4，NFA57-YVB100M4，NFA57-YVB112M4，NFA57-YVB132M4，NFA57-YVB63M4，NFA57-YVB71M4，NFA57-YVB80M4，NFA57-YVB90M4，NFA57-YVP100M4，NFA57-YVP112M4，NFA57-YVP132M4，NFA57-YVP63M4，NFA57-YVP71M4，NFA57-YVP80M4，NFA57-YVP90M4，NFA57-YVPEJ100M4，NFA57-YVPEJ112M4，NFA57-YVPEJ132M4，NFA57-YVPEJ63M4，NFA57-YVPEJ71M4，NFA57-YVPEJ80M4，NFA57-YVPEJ90M4，SFA57-Y0.12KW，SFA57-Y0.18KW，SFA57-Y0.25KW，SFA57-Y0.37KW，SFA57-Y0.55KW，SFA57-Y0.75KW，SFA57-Y1.1KW，SFA57-Y1.5KW，SFA57-Y100M4，SFA57-Y112M4，SFA57-Y132M4，SFA57-Y2.2KW，SFA57-Y3KW，SFA57-Y4KW，SFA57-Y5.5KW，SFA57-Y63M4，SFA57-Y71M4，SFA57-Y80M4，SFA57-Y90M4，SFA57-YB100M4，SFA57-YB112M4，SFA57-YB132M4，SFA57-YB63M4，SFA57-YB71M4，SFA57-YB80M4，SFA57-YB90M4，SFA57-YDP100M4，SFA57-YDP112M4，SFA57-YDP132M4，SFA57-YDP63M4，SFA57-YDP71M4，SFA57-YDP80M4，SFA57-YDP90M4，SFA57-YE100M4，SFA57-YE112M4，SFA57-YE132M4，SFA57-YE63M4，SFA57-YE71M4，SFA57-YE80M4，SFA57-YE90M4，SFA57-YEJ100M4，SFA57-YEJ112M4，SFA57-YEJ132M4，SFA57-YEJ63M4，SFA57-YEJ71M4，SFA57-YEJ80M4，SFA57-YEJ90M4，SFA57-YEJB100M4，SFA57-YEJB112M4，SFA57-YEJB132M4，SFA57-YEJB63M4，SFA57-YEJB71M4，SFA57-YEJB80M4，SFA57-YEJB90M4，SFA57-YP100M4，SFA57-YP112M4，SFA57-YP132M4，SFA57-YP63M4，SFA57-YP71M4，SFA57-YP80M4，SFA57-YP90M4，SFA57-YPB100M4，SFA57-YPB112M4，SFA57-YPB132M4，SFA57-YPB63M4，SFA57-YPB71M4，SFA57-YPB80M4，SFA57-YPB90M4，SFA57-YPE100M4，SFA57-YPE112M4，SFA57-YPE132M4，SFA57-YPE63M4，SFA57-YPE71M4，SFA57-YPE80M4，SFA57-YPE90M4，SFA57-YS100M4，SFA57-YS112M4，SFA57-YS132M4，SFA57-YS63M4，SFA57-YS71M4，SFA57-YS80M4，SFA57-YS90M4，SFA57-YVB100M4，SFA57-YVB112M4，SFA57-YVB132M4，SFA57-YVB63M4，SFA57-YVB71M4，SFA57-YVB80M4，SFA57-YVB90M4，SFA57-YVP100M4，SFA57-YVP112M4，SFA57-YVP132M4，SFA57-YVP63M4，SFA57-YVP71M4，SFA57-YVP80M4，SFA57-YVP90M4，SFA57-YVPEJ100M4，SFA57-YVPEJ112M4，SFA57-YVPEJ132M4，SFA57-YVPEJ63M4，SFA57-YVPEJ71M4，SFA57-YVPEJ80M4，SFA57-YVPEJ90M4，AFA57-Y0.12KW，AFA57-Y0.18KW，AFA57-Y0.25KW，AFA57-Y0.37KW，AFA57-Y0.55KW，AFA57-Y0.75KW，AFA57-Y1.1KW，AFA57-Y1.5KW，AFA57-Y100M4，AFA57-Y112M4，AFA57-Y132M4，AFA57-Y2.2KW，AFA57-Y3KW，AFA57-Y4KW，AFA57-Y5.5KW，AFA57-Y63M4，AFA57-Y71M4，AFA57-Y80M4，AFA57-Y90M4，AFA57-YB100M4，AFA57-YB112M4，AFA57-YB132M4，AFA57-YB63M4，AFA57-YB71M4，AFA57-YB80M4，AFA57-YB90M4，AFA57-YDP100M4，AFA57-YDP112M4，AFA57-YDP132M4，AFA57-YDP63M4，AFA57-YDP71M4，AFA57-YDP80M4，AFA57-YDP90M4，AFA57-YE100M4，AFA57-YE112M4，AFA57-YE132M4，AFA57-YE63M4，AFA57-YE71M4，AFA57-YE80M4，AFA57-YE90M4，AFA57-YEJ100M4，AFA57-YEJ112M4，AFA57-YEJ132M4，AFA57-YEJ63M4，AFA57-YEJ71M4，AFA57-YEJ80M4，AFA57-YEJ90M4，AFA57-YEJB100M4，AFA57-YEJB112M4，AFA57-YEJB132M4，AFA57-YEJB63M4，AFA57-YEJB71M4，AFA57-YEJB80M4，AFA57-YEJB90M4，AFA57-YP100M4，AFA57-YP112M4，AFA57-YP132M4，AFA57-YP63M4，AFA57-YP71M4，AFA57-YP80M4，AFA57-YP90M4，AFA57-YPB100M4，AFA57-YPB112M4，AFA57-YPB132M4，AFA57-YPB63M4，AFA57-YPB71M4，AFA57-YPB80M4，AFA57-YPB90M4，AFA57-YPE100M4，AFA57-YPE112M4，AFA57-YPE132M4，AFA57-YPE63M4，AFA57-YPE71M4，AFA57-YPE80M4，AFA57-YPE90M4，AFA57-YS100M4，AFA57-YS112M4，AFA57-YS132M4，AFA57-YS63M4，AFA57-YS71M4，AFA57-YS80M4，AFA57-YS90M4，AFA57-YVB100M4，AFA57-YVB112M4，AFA57-YVB132M4，AFA57-YVB63M4，AFA57-YVB71M4，AFA57-YVB80M4，AFA57-YVB90M4，AFA57-YVP100M4，AFA57-YVP112M4，AFA57-YVP132M4，AFA57-YVP63M4，AFA57-YVP71M4，AFA57-YVP80M4，AFA57-YVP90M4，AFA57-YVPEJ100M4，AFA57-YVPEJ112M4，AFA57-YVPEJ132M4，AFA57-YVPEJ63M4，AFA57-YVPEJ71M4，AFA57-YVPEJ80M4，AFA57-YVPEJ90M4，GFA59-Y0.12KW，GFA59-Y0.18KW，GFA59-Y0.25KW，GFA59-Y0.37KW，GFA59-Y0.55KW，GFA59-Y0.75KW，GFA59-Y1.1KW，GFA59-Y1.5KW，GFA59-Y100M4，GFA59-Y112M4，GFA59-Y132M4，GFA59-Y2.2KW，GFA59-Y3KW，GFA59-Y4KW，GFA59-Y5.5KW，GFA59-Y63M4，GFA59-Y71M4，GFA59-Y80M4，GFA59-Y90M4，GFA59-YB100M4，GFA59-YB112M4，GFA59-YB132M4，GFA59-YB63M4，GFA59-YB71M4，GFA59-YB80M4，GFA59-YB90M4，GFA59-YDP100M4，GFA59-YDP112M4，GFA59-YDP132M4，GFA59-YDP63M4，GFA59-YDP71M4，GFA59-YDP80M4，GFA59-YDP90M4，GFA59-YE100M4，GFA59-YE112M4，GFA59-YE132M4，GFA59-YE63M4，GFA59-YE71M4，GFA59-YE80M4，GFA59-YE90M4，GFA59-YEJ100M4，GFA59-YEJ112M4，GFA59-YEJ132M4，GFA59-YEJ63M4，GFA59-YEJ71M4，GFA59-YEJ80M4，GFA59-YEJ90M4，GFA59-YEJB100M4，GFA59-YEJB112M4，GFA59-YEJB132M4，GFA59-YEJB63M4，GFA59-YEJB71M4，GFA59-YEJB80M4，GFA59-YEJB90M4，GFA59-YP100M4，GFA59-YP112M4，GFA59-YP132M4，GFA59-YP63M4，GFA59-YP71M4，GFA59-YP80M4，GFA59-YP90M4，GFA59-YPB100M4，GFA59-YPB112M4，GFA59-YPB132M4，GFA59-YPB63M4，GFA59-YPB71M4，GFA59-YPB80M4，GFA59-YPB90M4，GFA59-YPE100M4，GFA59-YPE112M4，GFA59-YPE132M4，GFA59-YPE63M4，GFA59-YPE71M4，GFA59-YPE80M4，GFA59-YPE90M4，GFA59-YS100M4，GFA59-YS112M4，GFA59-YS132M4，GFA59-YS63M4，GFA59-YS71M4，GFA59-YS80M4，GFA59-YS90M4，GFA59-YVB100M4，GFA59-YVB112M4，GFA59-YVB132M4，GFA59-YVB63M4，GFA59-YVB71M4，GFA59-YVB80M4，GFA59-YVB90M4，GFA59-YVP100M4，GFA59-YVP112M4，GFA59-YVP132M4，GFA59-YVP63M4，GFA59-YVP71M4，GFA59-YVP80M4，GFA59-YVP90M4，GFA59-YVPEJ100M4，GFA59-YVPEJ112M4，GFA59-YVPEJ132M4，GFA59-YVPEJ63M4，GFA59-YVPEJ71M4，GFA59-YVPEJ80M4，GFA59-YVPEJ90M4。

FA59減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jsshenhu.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F59減速機
