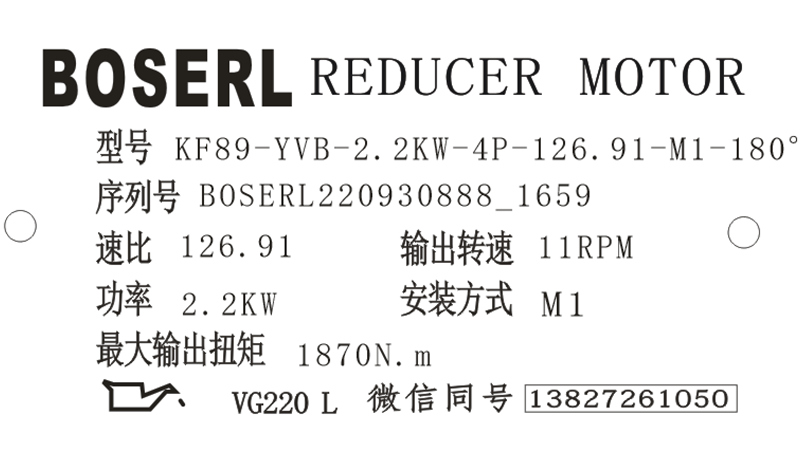

KF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K89減速機選型樣本。

KF89-YVB-2.2KW-4P-126.91-M1-180°

KF：系列代號

89：減速機規格代號

YVB：電機

2.2KW：電機功率

4P：電機級數

126.91：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

KF89減速機潤滑油型號：

KF89減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF89減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF89減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF89減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF89減速機選型樣本中列出了安裝位置從M1到M6KF89減速機相應的潤滑油加注標準，請自行下載查看。

KF89減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF89減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF89減速機使用說明：

KF89減速機警告說明：由于KF89減速機發熱或KF89減速機油溫過高可能引起燙傷；對KF89減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF89減速機注意事項：若未注入正確的KF89減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF89減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF89減速機說明書安裝位置章節中的內容。

KF89減速機的螺母：立式安裝KF89減速機輸出法蘭螺母規格M16；KF89減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF89減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF89減速機型號：

WKF87-Y0.37SKF，WKF87-Y0.55SKF，WKF87-Y0.75SKF，WKF87-Y1.1SKF，WKF87-Y1.5SKF，WKF87-Y100M4，WKF87-Y112M4，WKF87-Y11SKF，WKF87-Y132M4，WKF87-Y15SKF，WKF87-Y160M4，WKF87-Y18.5SKF，WKF87-Y180M4，WKF87-Y2.2SKF，WKF87-Y200M4，WKF87-Y22SKF，WKF87-Y3SKF，WKF87-Y4SKF，WKF87-Y5.5SKF，WKF87-Y7.5SKF，WKF87-Y71M4，WKF87-Y80M4，WKF87-Y90M4，WKF87-YB100M4，WKF87-YB112M4，WKF87-YB132M4，WKF87-YB160M4，WKF87-YB180M4，WKF87-YB200M4，WKF87-YB71M4，WKF87-YB80M4，WKF87-YB90M4，WKF87-YDP100M4，WKF87-YDP112M4，WKF87-YDP132M4，WKF87-YDP160M4，WKF87-YDP180M4，WKF87-YDP200M4，WKF87-YDP71M4，WKF87-YDP80M4，WKF87-YDP90M4，WKF87-YE100M4，WKF87-YE112M4，WKF87-YE132M4，WKF87-YE160M4，WKF87-YE180M4，WKF87-YE200M4，WKF87-YE71M4，WKF87-YE80M4，WKF87-YE90M4，WKF87-YEJ100M4，WKF87-YEJ112M4，WKF87-YEJ132M4，WKF87-YEJ160M4，WKF87-YEJ180M4，WKF87-YEJ200M4，WKF87-YEJ71M4，WKF87-YEJ80M4，WKF87-YEJ90M4，WKF87-YEJB100M4，WKF87-YEJB112M4，WKF87-YEJB132M4，WKF87-YEJB160M4，WKF87-YEJB180M4，WKF87-YEJB200M4，WKF87-YEJB71M4，WKF87-YEJB80M4，WKF87-YEJB90M4，WKF87-YP100M4，WKF87-YP112M4，WKF87-YP132M4，WKF87-YP160M4，WKF87-YP180M4，WKF87-YP200M4，WKF87-YP71M4，WKF87-YP80M4，WKF87-YP90M4，WKF87-YPB100M4，WKF87-YPB112M4，WKF87-YPB132M4，WKF87-YPB160M4，WKF87-YPB180M4，WKF87-YPB200M4，WKF87-YPB71M4，WKF87-YPB80M4，WKF87-YPB90M4，WKF87-YPE100M4，WKF87-YPE112M4，WKF87-YPE132M4，WKF87-YPE160M4，WKF87-YPE180M4，WKF87-YPE200M4，WKF87-YPE71M4，WKF87-YPE80M4，WKF87-YPE90M4，WKF87-YS100M4，WKF87-YS112M4，WKF87-YS132M4，WKF87-YS160M4，WKF87-YS180M4，WKF87-YS200M4，WKF87-YS71M4，WKF87-YS80M4，WKF87-YS90M4，WKF87-YVB100M4，WKF87-YVB112M4，WKF87-YVB132M4，WKF87-YVB160M4，WKF87-YVB180M4，WKF87-YVB200M4，WKF87-YVB71M4，WKF87-YVB80M4，WKF87-YVB90M4，WKF87-YVP100M4，WKF87-YVP112M4，WKF87-YVP132M4，WKF87-YVP160M4，WKF87-YVP180M4，WKF87-YVP200M4，WKF87-YVP71M4，WKF87-YVP80M4，WKF87-YVP90M4，WKF87-YVPEJ100M4，WKF87-YVPEJ112M4，WKF87-YVPEJ132M4，WKF87-YVPEJ160M4，WKF87-YVPEJ180M4，WKF87-YVPEJ200M4，WKF87-YVPEJ71M4，WKF87-YVPEJ80M4，WKF87-YVPEJ90M4，AKF87-Y0.37SKF，AKF87-Y0.55SKF，AKF87-Y0.75SKF，AKF87-Y1.1SKF，AKF87-Y1.5SKF，AKF87-Y100M4，AKF87-Y112M4，AKF87-Y11SKF，AKF87-Y132M4，AKF87-Y15SKF，AKF87-Y160M4，AKF87-Y18.5SKF，AKF87-Y180M4，AKF87-Y2.2SKF，AKF87-Y200M4，AKF87-Y22SKF，AKF87-Y3SKF，AKF87-Y4SKF，AKF87-Y5.5SKF，AKF87-Y7.5SKF，AKF87-Y71M4，AKF87-Y80M4，AKF87-Y90M4，AKF87-YB100M4，AKF87-YB112M4，AKF87-YB132M4，AKF87-YB160M4，AKF87-YB180M4，AKF87-YB200M4，AKF87-YB71M4，AKF87-YB80M4，AKF87-YB90M4，AKF87-YDP100M4，AKF87-YDP112M4，AKF87-YDP132M4，AKF87-YDP160M4，AKF87-YDP180M4，AKF87-YDP200M4，AKF87-YDP71M4，AKF87-YDP80M4，AKF87-YDP90M4，AKF87-YE100M4，AKF87-YE112M4，AKF87-YE132M4，AKF87-YE160M4，AKF87-YE180M4，AKF87-YE200M4，AKF87-YE71M4，AKF87-YE80M4，AKF87-YE90M4，AKF87-YEJ100M4，AKF87-YEJ112M4，AKF87-YEJ132M4，AKF87-YEJ160M4，AKF87-YEJ180M4，AKF87-YEJ200M4，AKF87-YEJ71M4，AKF87-YEJ80M4，AKF87-YEJ90M4，AKF87-YEJB100M4，AKF87-YEJB112M4，AKF87-YEJB132M4，AKF87-YEJB160M4，AKF87-YEJB180M4，AKF87-YEJB200M4，AKF87-YEJB71M4，AKF87-YEJB80M4，AKF87-YEJB90M4，AKF87-YP100M4，AKF87-YP112M4，AKF87-YP132M4，AKF87-YP160M4，AKF87-YP180M4，AKF87-YP200M4，AKF87-YP71M4，AKF87-YP80M4，AKF87-YP90M4，AKF87-YPB100M4，AKF87-YPB112M4，AKF87-YPB132M4，AKF87-YPB160M4，AKF87-YPB180M4，AKF87-YPB200M4，AKF87-YPB71M4，AKF87-YPB80M4，AKF87-YPB90M4，AKF87-YPE100M4，AKF87-YPE112M4，AKF87-YPE132M4，AKF87-YPE160M4，AKF87-YPE180M4，AKF87-YPE200M4，AKF87-YPE71M4，AKF87-YPE80M4，AKF87-YPE90M4，AKF87-YS100M4，AKF87-YS112M4，AKF87-YS132M4，AKF87-YS160M4，AKF87-YS180M4，AKF87-YS200M4，AKF87-YS71M4，AKF87-YS80M4，AKF87-YS90M4，AKF87-YVB100M4，AKF87-YVB112M4，AKF87-YVB132M4，AKF87-YVB160M4，AKF87-YVB180M4，AKF87-YVB200M4，AKF87-YVB71M4，AKF87-YVB80M4，AKF87-YVB90M4，AKF87-YVP100M4，AKF87-YVP112M4，AKF87-YVP132M4，AKF87-YVP160M4，AKF87-YVP180M4，AKF87-YVP200M4，AKF87-YVP71M4，AKF87-YVP80M4，AKF87-YVP90M4，AKF87-YVPEJ100M4，AKF87-YVPEJ112M4，AKF87-YVPEJ132M4，AKF87-YVPEJ160M4，AKF87-YVPEJ180M4，AKF87-YVPEJ200M4，AKF87-YVPEJ71M4，AKF87-YVPEJ80M4，AKF87-YVPEJ90M4，NKF87-Y0.37SKF，NKF87-Y0.55SKF，NKF87-Y0.75SKF，NKF87-Y1.1SKF，NKF87-Y1.5SKF，NKF87-Y100M4，NKF87-Y112M4，NKF87-Y11SKF，NKF87-Y132M4，NKF87-Y15SKF，NKF87-Y160M4，NKF87-Y18.5SKF，NKF87-Y180M4，NKF87-Y2.2SKF，NKF87-Y200M4，NKF87-Y22SKF，NKF87-Y3SKF，NKF87-Y4SKF，NKF87-Y5.5SKF，NKF87-Y7.5SKF，NKF87-Y71M4，NKF87-Y80M4，NKF87-Y90M4，NKF87-YB100M4，NKF87-YB112M4，NKF87-YB132M4，NKF87-YB160M4，NKF87-YB180M4，NKF87-YB200M4，NKF87-YB71M4，NKF87-YB80M4，NKF87-YB90M4，NKF87-YDP100M4，NKF87-YDP112M4，NKF87-YDP132M4，NKF87-YDP160M4，NKF87-YDP180M4，NKF87-YDP200M4，NKF87-YDP71M4，NKF87-YDP80M4，NKF87-YDP90M4，NKF87-YE100M4，NKF87-YE112M4，NKF87-YE132M4，NKF87-YE160M4，NKF87-YE180M4，NKF87-YE200M4，NKF87-YE71M4，NKF87-YE80M4，NKF87-YE90M4，NKF87-YEJ100M4，NKF87-YEJ112M4，NKF87-YEJ132M4，NKF87-YEJ160M4，NKF87-YEJ180M4，NKF87-YEJ200M4，NKF87-YEJ71M4，NKF87-YEJ80M4，NKF87-YEJ90M4，NKF87-YEJB100M4，NKF87-YEJB112M4，NKF87-YEJB132M4，NKF87-YEJB160M4，NKF87-YEJB180M4，NKF87-YEJB200M4，NKF87-YEJB71M4，NKF87-YEJB80M4，NKF87-YEJB90M4，NKF87-YP100M4，NKF87-YP112M4，NKF87-YP132M4，NKF87-YP160M4，NKF87-YP180M4，NKF87-YP200M4，NKF87-YP71M4，NKF87-YP80M4，NKF87-YP90M4，NKF87-YPB100M4，NKF87-YPB112M4，NKF87-YPB132M4，NKF87-YPB160M4，NKF87-YPB180M4，NKF87-YPB200M4，NKF87-YPB71M4，NKF87-YPB80M4，NKF87-YPB90M4，NKF87-YPE100M4，NKF87-YPE112M4，NKF87-YPE132M4，NKF87-YPE160M4，NKF87-YPE180M4，NKF87-YPE200M4，NKF87-YPE71M4，NKF87-YPE80M4，NKF87-YPE90M4，NKF87-YS100M4，NKF87-YS112M4，NKF87-YS132M4，NKF87-YS160M4，NKF87-YS180M4，NKF87-YS200M4，NKF87-YS71M4，NKF87-YS80M4，NKF87-YS90M4，NKF87-YVB100M4，NKF87-YVB112M4，NKF87-YVB132M4，NKF87-YVB160M4，NKF87-YVB180M4，NKF87-YVB200M4，NKF87-YVB71M4，NKF87-YVB80M4，NKF87-YVB90M4，NKF87-YVP100M4，NKF87-YVP112M4，NKF87-YVP132M4，NKF87-YVP160M4，NKF87-YVP180M4，NKF87-YVP200M4，NKF87-YVP71M4，NKF87-YVP80M4，NKF87-YVP90M4，NKF87-YVPEJ100M4，NKF87-YVPEJ112M4，NKF87-YVPEJ132M4，NKF87-YVPEJ160M4，NKF87-YVPEJ180M4，NKF87-YVPEJ200M4，NKF87-YVPEJ71M4，NKF87-YVPEJ80M4，NKF87-YVPEJ90M4，SKF87-Y0.37SKF，SKF87-Y0.55SKF，SKF87-Y0.75SKF，SKF87-Y1.1SKF，SKF87-Y1.5SKF，SKF87-Y100M4，SKF87-Y112M4，SKF87-Y11SKF，SKF87-Y132M4，SKF87-Y15SKF，SKF87-Y160M4，SKF87-Y18.5SKF，SKF87-Y180M4，SKF87-Y2.2SKF，SKF87-Y200M4，SKF87-Y22SKF，SKF87-Y3SKF，SKF87-Y4SKF，SKF87-Y5.5SKF，SKF87-Y7.5SKF，SKF87-Y71M4，SKF87-Y80M4，SKF87-Y90M4，SKF87-YB100M4，SKF87-YB112M4，SKF87-YB132M4，SKF87-YB160M4，SKF87-YB180M4，SKF87-YB200M4，SKF87-YB71M4，SKF87-YB80M4，SKF87-YB90M4，SKF87-YDP100M4，SKF87-YDP112M4，SKF87-YDP132M4，SKF87-YDP160M4，SKF87-YDP180M4，SKF87-YDP200M4，SKF87-YDP71M4，SKF87-YDP80M4，SKF87-YDP90M4，SKF87-YE100M4，SKF87-YE112M4，SKF87-YE132M4，SKF87-YE160M4，SKF87-YE180M4，SKF87-YE200M4，SKF87-YE71M4，SKF87-YE80M4，SKF87-YE90M4，SKF87-YEJ100M4，SKF87-YEJ112M4，SKF87-YEJ132M4，SKF87-YEJ160M4，SKF87-YEJ180M4，SKF87-YEJ200M4，SKF87-YEJ71M4，SKF87-YEJ80M4，SKF87-YEJ90M4，SKF87-YEJB100M4，SKF87-YEJB112M4，SKF87-YEJB132M4，SKF87-YEJB160M4，SKF87-YEJB180M4，SKF87-YEJB200M4，SKF87-YEJB71M4，SKF87-YEJB80M4，SKF87-YEJB90M4，SKF87-YP100M4，SKF87-YP112M4，SKF87-YP132M4，SKF87-YP160M4，SKF87-YP180M4，SKF87-YP200M4，SKF87-YP71M4，SKF87-YP80M4，SKF87-YP90M4，SKF87-YPB100M4，SKF87-YPB112M4，SKF87-YPB132M4，SKF87-YPB160M4，SKF87-YPB180M4，SKF87-YPB200M4，SKF87-YPB71M4，SKF87-YPB80M4，SKF87-YPB90M4，SKF87-YPE100M4，SKF87-YPE112M4，SKF87-YPE132M4，SKF87-YPE160M4，SKF87-YPE180M4，SKF87-YPE200M4，SKF87-YPE71M4，SKF87-YPE80M4，SKF87-YPE90M4，SKF87-YS100M4，SKF87-YS112M4，SKF87-YS132M4，SKF87-YS160M4，SKF87-YS180M4，SKF87-YS200M4，SKF87-YS71M4，SKF87-YS80M4，SKF87-YS90M4，SKF87-YVB100M4，SKF87-YVB112M4，SKF87-YVB132M4，SKF87-YVB160M4，SKF87-YVB180M4，SKF87-YVB200M4，SKF87-YVB71M4，SKF87-YVB80M4，SKF87-YVB90M4，SKF87-YVP100M4，SKF87-YVP112M4，SKF87-YVP132M4，SKF87-YVP160M4，SKF87-YVP180M4，SKF87-YVP200M4，SKF87-YVP71M4，SKF87-YVP80M4，SKF87-YVP90M4，SKF87-YVPEJ100M4，SKF87-YVPEJ112M4，SKF87-YVPEJ132M4，SKF87-YVPEJ160M4，SKF87-YVPEJ180M4，SKF87-YVPEJ200M4，SKF87-YVPEJ71M4，SKF87-YVPEJ80M4，SKF87-YVPEJ90M4，GKF89-Y0.37SKF，GKF89-Y0.55SKF，GKF89-Y0.75SKF，GKF89-Y1.1SKF，GKF89-Y1.5SKF，GKF89-Y100M4，GKF89-Y112M4，GKF89-Y11SKF，GKF89-Y132M4，GKF89-Y15SKF，GKF89-Y160M4，GKF89-Y18.5SKF，GKF89-Y180M4，GKF89-Y2.2SKF，GKF89-Y200M4，GKF89-Y22SKF，GKF89-Y3SKF，GKF89-Y4SKF，GKF89-Y5.5SKF，GKF89-Y7.5SKF，GKF89-Y71M4，GKF89-Y80M4，GKF89-Y90M4，GKF89-YB100M4，GKF89-YB112M4，GKF89-YB132M4，GKF89-YB160M4，GKF89-YB180M4，GKF89-YB200M4，GKF89-YB71M4，GKF89-YB80M4，GKF89-YB90M4，GKF89-YDP100M4，GKF89-YDP112M4，GKF89-YDP132M4，GKF89-YDP160M4，GKF89-YDP180M4，GKF89-YDP200M4，GKF89-YDP71M4，GKF89-YDP80M4，GKF89-YDP90M4，GKF89-YE100M4，GKF89-YE112M4，GKF89-YE132M4，GKF89-YE160M4，GKF89-YE180M4，GKF89-YE200M4，GKF89-YE71M4，GKF89-YE80M4，GKF89-YE90M4，GKF89-YEJ100M4，GKF89-YEJ112M4，GKF89-YEJ132M4，GKF89-YEJ160M4，GKF89-YEJ180M4，GKF89-YEJ200M4，GKF89-YEJ71M4，GKF89-YEJ80M4，GKF89-YEJ90M4，GKF89-YEJB100M4，GKF89-YEJB112M4，GKF89-YEJB132M4，GKF89-YEJB160M4，GKF89-YEJB180M4，GKF89-YEJB200M4，GKF89-YEJB71M4，GKF89-YEJB80M4，GKF89-YEJB90M4，GKF89-YP100M4，GKF89-YP112M4，GKF89-YP132M4，GKF89-YP160M4，GKF89-YP180M4，GKF89-YP200M4，GKF89-YP71M4，GKF89-YP80M4，GKF89-YP90M4，GKF89-YPB100M4，GKF89-YPB112M4，GKF89-YPB132M4，GKF89-YPB160M4，GKF89-YPB180M4，GKF89-YPB200M4，GKF89-YPB71M4，GKF89-YPB80M4，GKF89-YPB90M4，GKF89-YPE100M4，GKF89-YPE112M4，GKF89-YPE132M4，GKF89-YPE160M4，GKF89-YPE180M4，GKF89-YPE200M4，GKF89-YPE71M4，GKF89-YPE80M4，GKF89-YPE90M4，GKF89-YS100M4，GKF89-YS112M4，GKF89-YS132M4，GKF89-YS160M4，GKF89-YS180M4，GKF89-YS200M4，GKF89-YS71M4，GKF89-YS80M4，GKF89-YS90M4，GKF89-YVB100M4，GKF89-YVB112M4，GKF89-YVB132M4，GKF89-YVB160M4，GKF89-YVB180M4，GKF89-YVB200M4，GKF89-YVB71M4，GKF89-YVB80M4，GKF89-YVB90M4，GKF89-YVP100M4，GKF89-YVP112M4，GKF89-YVP132M4，GKF89-YVP160M4，GKF89-YVP180M4，GKF89-YVP200M4，GKF89-YVP71M4，GKF89-YVP80M4，GKF89-YVP90M4，GKF89-YVPEJ100M4，GKF89-YVPEJ112M4，GKF89-YVPEJ132M4，GKF89-YVPEJ160M4，GKF89-YVPEJ180M4，GKF89-YVPEJ200M4，GKF89-YVPEJ71M4，GKF89-YVPEJ80M4，GKF89-YVPEJ90M4。

KF89減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jsshenhu.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K89減速機
