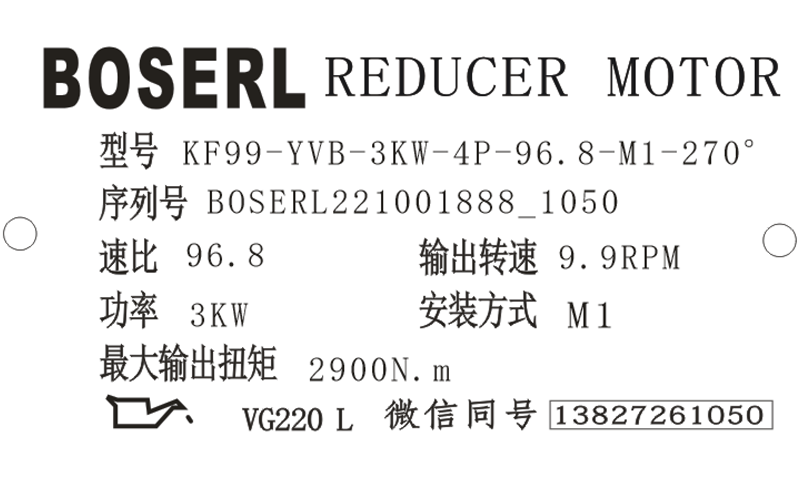

KF99減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K99減速機選型樣本。

KF99-YVB-3KW-4P-96.8-M1-270°

KF：系列代號

99：減速機規格代號

YVB：電機

3KW：電機功率

4P：電機級數

96.8：減速機傳動比

M1：減速機安裝位置

270°：接線盒位置

KF99減速機潤滑油型號：

KF99減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF99減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF99減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF99減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF99減速機選型樣本中列出了安裝位置從M1到M6KF99減速機相應的潤滑油加注標準，請自行下載查看。

KF99減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF99減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF99減速機使用說明：

KF99減速機警告說明：由于KF99減速機發熱或KF99減速機油溫過高可能引起燙傷；對KF99減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF99減速機注意事項：若未注入正確的KF99減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF99減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF99減速機說明書安裝位置章節中的內容。

KF99減速機的螺母：立式安裝KF99減速機輸出法蘭螺母規格M16；KF99減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF99減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF99減速機型號：

WKF97-Y1.1SKF，WKF97-Y1.5SKF，WKF97-Y100M4，WKF97-Y112M4，WKF97-Y11SKF，WKF97-Y132M4，WKF97-Y15SKF，WKF97-Y160M4，WKF97-Y18.5SKF，WKF97-Y180M4，WKF97-Y2.2SKF，WKF97-Y200M4，WKF97-Y22SKF，WKF97-Y30SKF，WKF97-Y3SKF，WKF97-Y4SKF，WKF97-Y5.5SKF，WKF97-Y7.5SKF，WKF97-Y80M4，WKF97-Y90M4，WKF97-YB100M4，WKF97-YB112M4，WKF97-YB132M4，WKF97-YB160M4，WKF97-YB180M4，WKF97-YB200M4，WKF97-YB80M4，WKF97-YB90M4，WKF97-YDP100M4，WKF97-YDP112M4，WKF97-YDP132M4，WKF97-YDP160M4，WKF97-YDP180M4，WKF97-YDP200M4，WKF97-YDP80M4，WKF97-YDP90M4，WKF97-YE100M4，WKF97-YE112M4，WKF97-YE132M4，WKF97-YE160M4，WKF97-YE180M4，WKF97-YE200M4，WKF97-YE80M4，WKF97-YE90M4，WKF97-YEJ100M4，WKF97-YEJ112M4，WKF97-YEJ132M4，WKF97-YEJ160M4，WKF97-YEJ180M4，WKF97-YEJ200M4，WKF97-YEJ80M4，WKF97-YEJ90M4，WKF97-YEJB100M4，WKF97-YEJB112M4，WKF97-YEJB132M4，WKF97-YEJB160M4，WKF97-YEJB180M4，WKF97-YEJB200M4，WKF97-YEJB80M4，WKF97-YEJB90M4，WKF97-YP100M4，WKF97-YP112M4，WKF97-YP132M4，WKF97-YP160M4，WKF97-YP180M4，WKF97-YP200M4，WKF97-YP80M4，WKF97-YP90M4，WKF97-YPB100M4，WKF97-YPB112M4，WKF97-YPB132M4，WKF97-YPB160M4，WKF97-YPB180M4，WKF97-YPB200M4，WKF97-YPB80M4，WKF97-YPB90M4，WKF97-YPE100M4，WKF97-YPE112M4，WKF97-YPE132M4，WKF97-YPE160M4，WKF97-YPE180M4，WKF97-YPE200M4，WKF97-YPE80M4，WKF97-YPE90M4，WKF97-YS100M4，WKF97-YS112M4，WKF97-YS132M4，WKF97-YS160M4，WKF97-YS180M4，WKF97-YS200M4，WKF97-YS80M4，WKF97-YS90M4，WKF97-YVB100M4，WKF97-YVB112M4，WKF97-YVB132M4，WKF97-YVB160M4，WKF97-YVB180M4，WKF97-YVB200M4，WKF97-YVB80M4，WKF97-YVB90M4，WKF97-YVP100M4，WKF97-YVP112M4，WKF97-YVP132M4，WKF97-YVP160M4，WKF97-YVP180M4，WKF97-YVP200M4，WKF97-YVP80M4，WKF97-YVP90M4，WKF97-YVPEJ100M4，WKF97-YVPEJ112M4，WKF97-YVPEJ132M4，WKF97-YVPEJ160M4，WKF97-YVPEJ180M4，WKF97-YVPEJ200M4，WKF97-YVPEJ80M4，WKF97-YVPEJ90M4，SKF97-Y1.1SKF，SKF97-Y1.5SKF，SKF97-Y100M4，SKF97-Y112M4，SKF97-Y11SKF，SKF97-Y132M4，SKF97-Y15SKF，SKF97-Y160M4，SKF97-Y18.5SKF，SKF97-Y180M4，SKF97-Y2.2SKF，SKF97-Y200M4，SKF97-Y22SKF，SKF97-Y30SKF，SKF97-Y3SKF，SKF97-Y4SKF，SKF97-Y5.5SKF，SKF97-Y7.5SKF，SKF97-Y80M4，SKF97-Y90M4，SKF97-YB100M4，SKF97-YB112M4，SKF97-YB132M4，SKF97-YB160M4，SKF97-YB180M4，SKF97-YB200M4，SKF97-YB80M4，SKF97-YB90M4，SKF97-YDP100M4，SKF97-YDP112M4，SKF97-YDP132M4，SKF97-YDP160M4，SKF97-YDP180M4，SKF97-YDP200M4，SKF97-YDP80M4，SKF97-YDP90M4，SKF97-YE100M4，SKF97-YE112M4，SKF97-YE132M4，SKF97-YE160M4，SKF97-YE180M4，SKF97-YE200M4，SKF97-YE80M4，SKF97-YE90M4，SKF97-YEJ100M4，SKF97-YEJ112M4，SKF97-YEJ132M4，SKF97-YEJ160M4，SKF97-YEJ180M4，SKF97-YEJ200M4，SKF97-YEJ80M4，SKF97-YEJ90M4，SKF97-YEJB100M4，SKF97-YEJB112M4，SKF97-YEJB132M4，SKF97-YEJB160M4，SKF97-YEJB180M4，SKF97-YEJB200M4，SKF97-YEJB80M4，SKF97-YEJB90M4，SKF97-YP100M4，SKF97-YP112M4，SKF97-YP132M4，SKF97-YP160M4，SKF97-YP180M4，SKF97-YP200M4，SKF97-YP80M4，SKF97-YP90M4，SKF97-YPB100M4，SKF97-YPB112M4，SKF97-YPB132M4，SKF97-YPB160M4，SKF97-YPB180M4，SKF97-YPB200M4，SKF97-YPB80M4，SKF97-YPB90M4，SKF97-YPE100M4，SKF97-YPE112M4，SKF97-YPE132M4，SKF97-YPE160M4，SKF97-YPE180M4，SKF97-YPE200M4，SKF97-YPE80M4，SKF97-YPE90M4，SKF97-YS100M4，SKF97-YS112M4，SKF97-YS132M4，SKF97-YS160M4，SKF97-YS180M4，SKF97-YS200M4，SKF97-YS80M4，SKF97-YS90M4，SKF97-YVB100M4，SKF97-YVB112M4，SKF97-YVB132M4，SKF97-YVB160M4，SKF97-YVB180M4，SKF97-YVB200M4，SKF97-YVB80M4，SKF97-YVB90M4，SKF97-YVP100M4，SKF97-YVP112M4，SKF97-YVP132M4，SKF97-YVP160M4，SKF97-YVP180M4，SKF97-YVP200M4，SKF97-YVP80M4，SKF97-YVP90M4，SKF97-YVPEJ100M4，SKF97-YVPEJ112M4，SKF97-YVPEJ132M4，SKF97-YVPEJ160M4，SKF97-YVPEJ180M4，SKF97-YVPEJ200M4，SKF97-YVPEJ80M4，SKF97-YVPEJ90M4，AKF97-Y1.1SKF，AKF97-Y1.5SKF，AKF97-Y100M4，AKF97-Y112M4，AKF97-Y11SKF，AKF97-Y132M4，AKF97-Y15SKF，AKF97-Y160M4，AKF97-Y18.5SKF，AKF97-Y180M4，AKF97-Y2.2SKF，AKF97-Y200M4，AKF97-Y22SKF，AKF97-Y30SKF，AKF97-Y3SKF，AKF97-Y4SKF，AKF97-Y5.5SKF，AKF97-Y7.5SKF，AKF97-Y80M4，AKF97-Y90M4，AKF97-YB100M4，AKF97-YB112M4，AKF97-YB132M4，AKF97-YB160M4，AKF97-YB180M4，AKF97-YB200M4，AKF97-YB80M4，AKF97-YB90M4，AKF97-YDP100M4，AKF97-YDP112M4，AKF97-YDP132M4，AKF97-YDP160M4，AKF97-YDP180M4，AKF97-YDP200M4，AKF97-YDP80M4，AKF97-YDP90M4，AKF97-YE100M4，AKF97-YE112M4，AKF97-YE132M4，AKF97-YE160M4，AKF97-YE180M4，AKF97-YE200M4，AKF97-YE80M4，AKF97-YE90M4，AKF97-YEJ100M4，AKF97-YEJ112M4，AKF97-YEJ132M4，AKF97-YEJ160M4，AKF97-YEJ180M4，AKF97-YEJ200M4，AKF97-YEJ80M4，AKF97-YEJ90M4，AKF97-YEJB100M4，AKF97-YEJB112M4，AKF97-YEJB132M4，AKF97-YEJB160M4，AKF97-YEJB180M4，AKF97-YEJB200M4，AKF97-YEJB80M4，AKF97-YEJB90M4，AKF97-YP100M4，AKF97-YP112M4，AKF97-YP132M4，AKF97-YP160M4，AKF97-YP180M4，AKF97-YP200M4，AKF97-YP80M4，AKF97-YP90M4，AKF97-YPB100M4，AKF97-YPB112M4，AKF97-YPB132M4，AKF97-YPB160M4，AKF97-YPB180M4，AKF97-YPB200M4，AKF97-YPB80M4，AKF97-YPB90M4，AKF97-YPE100M4，AKF97-YPE112M4，AKF97-YPE132M4，AKF97-YPE160M4，AKF97-YPE180M4，AKF97-YPE200M4，AKF97-YPE80M4，AKF97-YPE90M4，AKF97-YS100M4，AKF97-YS112M4，AKF97-YS132M4，AKF97-YS160M4，AKF97-YS180M4，AKF97-YS200M4，AKF97-YS80M4，AKF97-YS90M4，AKF97-YVB100M4，AKF97-YVB112M4，AKF97-YVB132M4，AKF97-YVB160M4，AKF97-YVB180M4，AKF97-YVB200M4，AKF97-YVB80M4，AKF97-YVB90M4，AKF97-YVP100M4，AKF97-YVP112M4，AKF97-YVP132M4，AKF97-YVP160M4，AKF97-YVP180M4，AKF97-YVP200M4，AKF97-YVP80M4，AKF97-YVP90M4，AKF97-YVPEJ100M4，AKF97-YVPEJ112M4，AKF97-YVPEJ132M4，AKF97-YVPEJ160M4，AKF97-YVPEJ180M4，AKF97-YVPEJ200M4，AKF97-YVPEJ80M4，AKF97-YVPEJ90M4，NKF97-Y1.1SKF，NKF97-Y1.5SKF，NKF97-Y100M4，NKF97-Y112M4，NKF97-Y11SKF，NKF97-Y132M4，NKF97-Y15SKF，NKF97-Y160M4，NKF97-Y18.5SKF，NKF97-Y180M4，NKF97-Y2.2SKF，NKF97-Y200M4，NKF97-Y22SKF，NKF97-Y30SKF，NKF97-Y3SKF，NKF97-Y4SKF，NKF97-Y5.5SKF，NKF97-Y7.5SKF，NKF97-Y80M4，NKF97-Y90M4，NKF97-YB100M4，NKF97-YB112M4，NKF97-YB132M4，NKF97-YB160M4，NKF97-YB180M4，NKF97-YB200M4，NKF97-YB80M4，NKF97-YB90M4，NKF97-YDP100M4，NKF97-YDP112M4，NKF97-YDP132M4，NKF97-YDP160M4，NKF97-YDP180M4，NKF97-YDP200M4，NKF97-YDP80M4，NKF97-YDP90M4，NKF97-YE100M4，NKF97-YE112M4，NKF97-YE132M4，NKF97-YE160M4，NKF97-YE180M4，NKF97-YE200M4，NKF97-YE80M4，NKF97-YE90M4，NKF97-YEJ100M4，NKF97-YEJ112M4，NKF97-YEJ132M4，NKF97-YEJ160M4，NKF97-YEJ180M4，NKF97-YEJ200M4，NKF97-YEJ80M4，NKF97-YEJ90M4，NKF97-YEJB100M4，NKF97-YEJB112M4，NKF97-YEJB132M4，NKF97-YEJB160M4，NKF97-YEJB180M4，NKF97-YEJB200M4，NKF97-YEJB80M4，NKF97-YEJB90M4，NKF97-YP100M4，NKF97-YP112M4，NKF97-YP132M4，NKF97-YP160M4，NKF97-YP180M4，NKF97-YP200M4，NKF97-YP80M4，NKF97-YP90M4，NKF97-YPB100M4，NKF97-YPB112M4，NKF97-YPB132M4，NKF97-YPB160M4，NKF97-YPB180M4，NKF97-YPB200M4，NKF97-YPB80M4，NKF97-YPB90M4，NKF97-YPE100M4，NKF97-YPE112M4，NKF97-YPE132M4，NKF97-YPE160M4，NKF97-YPE180M4，NKF97-YPE200M4，NKF97-YPE80M4，NKF97-YPE90M4，NKF97-YS100M4，NKF97-YS112M4，NKF97-YS132M4，NKF97-YS160M4，NKF97-YS180M4，NKF97-YS200M4，NKF97-YS80M4，NKF97-YS90M4，NKF97-YVB100M4，NKF97-YVB112M4，NKF97-YVB132M4，NKF97-YVB160M4，NKF97-YVB180M4，NKF97-YVB200M4，NKF97-YVB80M4，NKF97-YVB90M4，NKF97-YVP100M4，NKF97-YVP112M4，NKF97-YVP132M4，NKF97-YVP160M4，NKF97-YVP180M4，NKF97-YVP200M4，NKF97-YVP80M4，NKF97-YVP90M4，NKF97-YVPEJ100M4，NKF97-YVPEJ112M4，NKF97-YVPEJ132M4，NKF97-YVPEJ160M4，NKF97-YVPEJ180M4，NKF97-YVPEJ200M4，NKF97-YVPEJ80M4，NKF97-YVPEJ90M4，GKF99-Y1.1SKF，GKF99-Y1.5SKF，GKF99-Y100M4，GKF99-Y112M4，GKF99-Y11SKF，GKF99-Y132M4，GKF99-Y15SKF，GKF99-Y160M4，GKF99-Y18.5SKF，GKF99-Y180M4，GKF99-Y2.2SKF，GKF99-Y200M4，GKF99-Y22SKF，GKF99-Y30SKF，GKF99-Y3SKF，GKF99-Y4SKF，GKF99-Y5.5SKF，GKF99-Y7.5SKF，GKF99-Y80M4，GKF99-Y90M4，GKF99-YB100M4，GKF99-YB112M4，GKF99-YB132M4，GKF99-YB160M4，GKF99-YB180M4，GKF99-YB200M4，GKF99-YB80M4，GKF99-YB90M4，GKF99-YDP100M4，GKF99-YDP112M4，GKF99-YDP132M4，GKF99-YDP160M4，GKF99-YDP180M4，GKF99-YDP200M4，GKF99-YDP80M4，GKF99-YDP90M4，GKF99-YE100M4，GKF99-YE112M4，GKF99-YE132M4，GKF99-YE160M4，GKF99-YE180M4，GKF99-YE200M4，GKF99-YE80M4，GKF99-YE90M4，GKF99-YEJ100M4，GKF99-YEJ112M4，GKF99-YEJ132M4，GKF99-YEJ160M4，GKF99-YEJ180M4，GKF99-YEJ200M4，GKF99-YEJ80M4，GKF99-YEJ90M4，GKF99-YEJB100M4，GKF99-YEJB112M4，GKF99-YEJB132M4，GKF99-YEJB160M4，GKF99-YEJB180M4，GKF99-YEJB200M4，GKF99-YEJB80M4，GKF99-YEJB90M4，GKF99-YP100M4，GKF99-YP112M4，GKF99-YP132M4，GKF99-YP160M4，GKF99-YP180M4，GKF99-YP200M4，GKF99-YP80M4，GKF99-YP90M4，GKF99-YPB100M4，GKF99-YPB112M4，GKF99-YPB132M4，GKF99-YPB160M4，GKF99-YPB180M4，GKF99-YPB200M4，GKF99-YPB80M4，GKF99-YPB90M4，GKF99-YPE100M4，GKF99-YPE112M4，GKF99-YPE132M4，GKF99-YPE160M4，GKF99-YPE180M4，GKF99-YPE200M4，GKF99-YPE80M4，GKF99-YPE90M4，GKF99-YS100M4，GKF99-YS112M4，GKF99-YS132M4，GKF99-YS160M4，GKF99-YS180M4，GKF99-YS200M4，GKF99-YS80M4，GKF99-YS90M4，GKF99-YVB100M4，GKF99-YVB112M4，GKF99-YVB132M4，GKF99-YVB160M4，GKF99-YVB180M4，GKF99-YVB200M4，GKF99-YVB80M4，GKF99-YVB90M4，GKF99-YVP100M4，GKF99-YVP112M4，GKF99-YVP132M4，GKF99-YVP160M4，GKF99-YVP180M4，GKF99-YVP200M4，GKF99-YVP80M4，GKF99-YVP90M4，GKF99-YVPEJ100M4，GKF99-YVPEJ112M4，GKF99-YVPEJ132M4，GKF99-YVPEJ160M4，GKF99-YVPEJ180M4，GKF99-YVPEJ200M4，GKF99-YVPEJ80M4，GKF99-YVPEJ90M4。

KF99減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://m.jsshenhu.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K99減速機
