R79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R79R39減速機選型樣本。

R79R39-YVP0.55KW-4P-186-M5-90°

R/R：系列代號

79/39：減速機規格代號

Y：電機

VP：變頻電機

0.55KW：電機功率

4P：電機級數

186：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

R79R39減速機潤滑油檢查：

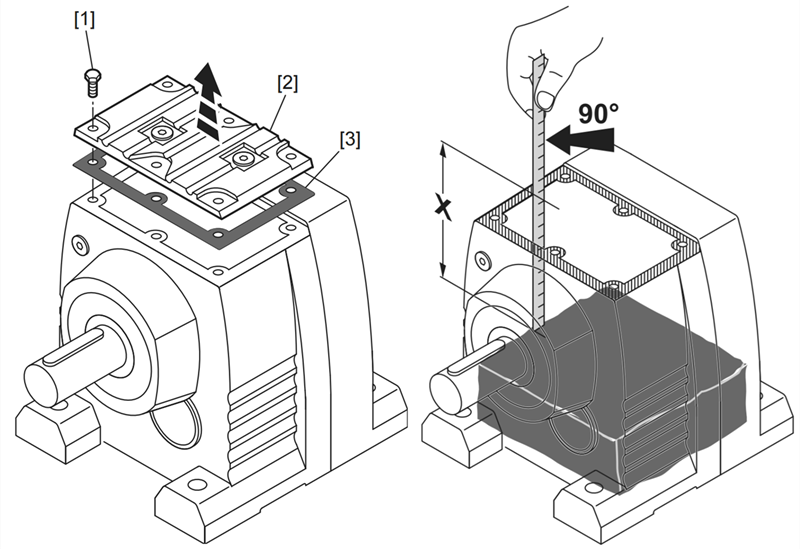

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

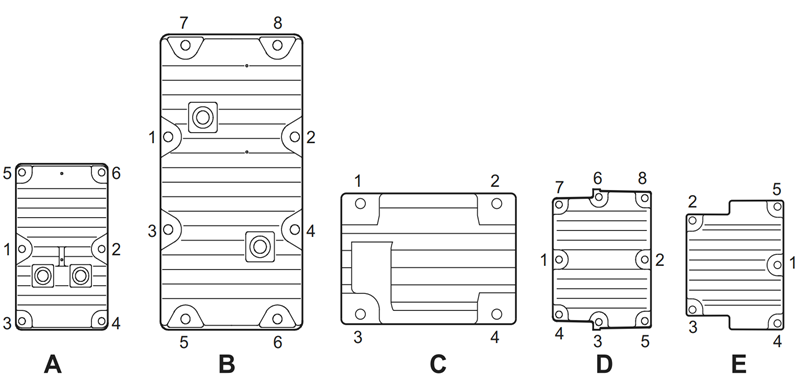

R79R39減速機油位檢查完畢后密封R79R39減速機：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照?qǐng)D中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

R79R39減速機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R79R39減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。R系列減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。臥式減速機

R79R39減速機型號：

YQR77R37-Y63M4，YQR77R37-Y71M4，YQR77R37-Y80M4，YQR77RF37-Y0.12KW，YQR77RF37-Y0.18KW，YQR77RF37-Y0.25KW，YQR77RF37-Y0.37KW，YQR77RF37-Y0.55KW，YQR77RF37-Y63M4，YQR77RF37-Y71M4，YQR77RF37-Y80M4，YQR77RF37-YB63M4，YQR77RF37-YB71M4，YQR77RF37-YB80M4，YQR77RF37-YDP63M4，YQR77RF37-YDP71M4，YQR77RF37-YDP80M4，YQR77RF37-YE63M4，YQR77RF37-YE71M4，YQR77RF37-YE80M4，YQR77RF37-YEJ63M4，YQR77RF37-YEJ71M4，YQR77RF37-YEJ80M4，YQR77RF37-YEJB63M4，YQR77RF37-YEJB71M4，YQR77RF37-YEJB80M4，YQR77RF37-YP63M4，YQR77RF37-YP71M4，YQR77RF37-YP80M4，YQR77RF37-YPB63M4，YQR77RF37-YPB71M4，YQR77RF37-YPB80M4，YQR77RF37-YPE63M4，YQR77RF37-YPE71M4，YQR77RF37-YPE80M4，YQR77RF37-YS63M4，YQR77RF37-YS71M4，YQR77RF37-YS80M4，YQR77RF37-YVB63M4，YQR77RF37-YVB71M4，YQR77RF37-YVB80M4，YQR77RF37-YVP63M4，YQR77RF37-YVP71M4，YQR77RF37-YVP80M4，YQR77RF37-YVPEJ63M4，YQR77RF37-YVPEJ71M4，YQR77RF37-YVPEJ80M4，AR77R37-Y63M4，AR77R37-Y71M4，AR77R37-Y80M4，AR77RF37-Y0.12KW，AR77RF37-Y0.18KW，AR77RF37-Y0.25KW，AR77RF37-Y0.37KW，AR77RF37-Y0.55KW，AR77RF37-Y63M4，AR77RF37-Y71M4，AR77RF37-Y80M4，AR77RF37-YB63M4，AR77RF37-YB71M4，AR77RF37-YB80M4，AR77RF37-YDP63M4，AR77RF37-YDP71M4，AR77RF37-YDP80M4，AR77RF37-YE63M4，AR77RF37-YE71M4，AR77RF37-YE80M4，AR77RF37-YEJ63M4，AR77RF37-YEJ71M4，AR77RF37-YEJ80M4，AR77RF37-YEJB63M4，AR77RF37-YEJB71M4，AR77RF37-YEJB80M4，AR77RF37-YP63M4，AR77RF37-YP71M4，AR77RF37-YP80M4，AR77RF37-YPB63M4，AR77RF37-YPB71M4，AR77RF37-YPB80M4，AR77RF37-YPE63M4，AR77RF37-YPE71M4，AR77RF37-YPE80M4，AR77RF37-YS63M4，AR77RF37-YS71M4，AR77RF37-YS80M4，AR77RF37-YVB63M4，AR77RF37-YVB71M4，AR77RF37-YVB80M4，AR77RF37-YVP63M4，AR77RF37-YVP71M4，AR77RF37-YVP80M4，AR77RF37-YVPEJ63M4，AR77RF37-YVPEJ71M4，AR77RF37-YVPEJ80M4，SR77R37-Y63M4，SR77R37-Y71M4，SR77R37-Y80M4，SR77RF37-Y0.12KW，SR77RF37-Y0.18KW，SR77RF37-Y0.25KW，SR77RF37-Y0.37KW，SR77RF37-Y0.55KW，SR77RF37-Y63M4，SR77RF37-Y71M4，SR77RF37-Y80M4，SR77RF37-YB63M4，SR77RF37-YB71M4，SR77RF37-YB80M4，SR77RF37-YDP63M4，SR77RF37-YDP71M4，SR77RF37-YDP80M4，SR77RF37-YE63M4，SR77RF37-YE71M4，SR77RF37-YE80M4，SR77RF37-YEJ63M4，SR77RF37-YEJ71M4，SR77RF37-YEJ80M4，SR77RF37-YEJB63M4，SR77RF37-YEJB71M4，SR77RF37-YEJB80M4，SR77RF37-YP63M4，SR77RF37-YP71M4，SR77RF37-YP80M4，SR77RF37-YPB63M4，SR77RF37-YPB71M4，SR77RF37-YPB80M4，SR77RF37-YPE63M4，SR77RF37-YPE71M4，SR77RF37-YPE80M4，SR77RF37-YS63M4，SR77RF37-YS71M4，SR77RF37-YS80M4，SR77RF37-YVB63M4，SR77RF37-YVB71M4，SR77RF37-YVB80M4，SR77RF37-YVP63M4，SR77RF37-YVP71M4，SR77RF37-YVP80M4，SR77RF37-YVPEJ63M4，SR77RF37-YVPEJ71M4，SR77RF37-YVPEJ80M4，XDR77R37-Y63M4，XDR77R37-Y71M4，XDR77R37-Y80M4，XDR77RF37-Y0.12KW，XDR77RF37-Y0.18KW，XDR77RF37-Y0.25KW，XDR77RF37-Y0.37KW，XDR77RF37-Y0.55KW，XDR77RF37-Y63M4，XDR77RF37-Y71M4，XDR77RF37-Y80M4，XDR77RF37-YB63M4，XDR77RF37-YB71M4，XDR77RF37-YB80M4，XDR77RF37-YDP63M4，XDR77RF37-YDP71M4，XDR77RF37-YDP80M4，XDR77RF37-YE63M4，XDR77RF37-YE71M4，XDR77RF37-YE80M4，XDR77RF37-YEJ63M4，XDR77RF37-YEJ71M4，XDR77RF37-YEJ80M4，XDR77RF37-YEJB63M4，XDR77RF37-YEJB71M4，XDR77RF37-YEJB80M4，XDR77RF37-YP63M4，XDR77RF37-YP71M4，XDR77RF37-YP80M4，XDR77RF37-YPB63M4，XDR77RF37-YPB71M4，XDR77RF37-YPB80M4，XDR77RF37-YPE63M4，XDR77RF37-YPE71M4，XDR77RF37-YPE80M4，XDR77RF37-YS63M4，XDR77RF37-YS71M4，XDR77RF37-YS80M4，XDR77RF37-YVB63M4，XDR77RF37-YVB71M4，XDR77RF37-YVB80M4，XDR77RF37-YVP63M4，XDR77RF37-YVP71M4，XDR77RF37-YVP80M4，XDR77RF37-YVPEJ63M4，XDR77RF37-YVPEJ71M4，XDR77RF37-YVPEJ80M4，WR77R37-Y63M4，WR77R37-Y71M4，WR77R37-Y80M4，WR77RF37-Y0.12KW，WR77RF37-Y0.18KW，WR77RF37-Y0.25KW，WR77RF37-Y0.37KW，WR77RF37-Y0.55KW，WR77RF37-Y63M4，WR77RF37-Y71M4，WR77RF37-Y80M4，WR77RF37-YB63M4，WR77RF37-YB71M4，WR77RF37-YB80M4，WR77RF37-YDP63M4，WR77RF37-YDP71M4，WR77RF37-YDP80M4，WR77RF37-YE63M4，WR77RF37-YE71M4，WR77RF37-YE80M4，WR77RF37-YEJ63M4，WR77RF37-YEJ71M4，WR77RF37-YEJ80M4，WR77RF37-YEJB63M4，WR77RF37-YEJB71M4，WR77RF37-YEJB80M4，WR77RF37-YP63M4，WR77RF37-YP71M4，WR77RF37-YP80M4，WR77RF37-YPB63M4，WR77RF37-YPB71M4，WR77RF37-YPB80M4，WR77RF37-YPE63M4，WR77RF37-YPE71M4，WR77RF37-YPE80M4，WR77RF37-YS63M4，WR77RF37-YS71M4，WR77RF37-YS80M4，WR77RF37-YVB63M4，WR77RF37-YVB71M4，WR77RF37-YVB80M4，WR77RF37-YVP63M4，WR77RF37-YVP71M4，WR77RF37-YVP80M4，WR77RF37-YVPEJ63M4，WR77RF37-YVPEJ71M4，WR77RF37-YVPEJ80M4，NR77R37-Y63M4，NR77R37-Y71M4，NR77R37-Y80M4，NR77RF37-Y0.12KW，NR77RF37-Y0.18KW，NR77RF37-Y0.25KW，NR77RF37-Y0.37KW，NR77RF37-Y0.55KW，NR77RF37-Y63M4，NR77RF37-Y71M4，NR77RF37-Y80M4，NR77RF37-YB63M4，NR77RF37-YB71M4，NR77RF37-YB80M4，NR77RF37-YDP63M4，NR77RF37-YDP71M4，NR77RF37-YDP80M4，NR77RF37-YE63M4，NR77RF37-YE71M4，NR77RF37-YE80M4，NR77RF37-YEJ63M4，NR77RF37-YEJ71M4，NR77RF37-YEJ80M4，NR77RF37-YEJB63M4，NR77RF37-YEJB71M4，NR77RF37-YEJB80M4，NR77RF37-YP63M4，NR77RF37-YP71M4，NR77RF37-YP80M4，NR77RF37-YPB63M4，NR77RF37-YPB71M4，NR77RF37-YPB80M4，NR77RF37-YPE63M4，NR77RF37-YPE71M4，NR77RF37-YPE80M4，NR77RF37-YS63M4，NR77RF37-YS71M4，NR77RF37-YS80M4，NR77RF37-YVB63M4，NR77RF37-YVB71M4，NR77RF37-YVB80M4，NR77RF37-YVP63M4，NR77RF37-YVP71M4，NR77RF37-YVP80M4，NR77RF37-YVPEJ63M4，NR77RF37-YVPEJ71M4，NR77RF37-YVPEJ80M4，JCR77R37-Y63M4，JCR77R37-Y71M4，JCR77R37-Y80M4，JCR77RF37-Y0.12KW，JCR77RF37-Y0.18KW，JCR77RF37-Y0.25KW，JCR77RF37-Y0.37KW，JCR77RF37-Y0.55KW，JCR77RF37-Y63M4，JCR77RF37-Y71M4，JCR77RF37-Y80M4，JCR77RF37-YB63M4，JCR77RF37-YB71M4，JCR77RF37-YB80M4，JCR77RF37-YDP63M4，JCR77RF37-YDP71M4，JCR77RF37-YDP80M4，JCR77RF37-YE63M4，JCR77RF37-YE71M4，JCR77RF37-YE80M4，JCR77RF37-YEJ63M4，JCR77RF37-YEJ71M4，JCR77RF37-YEJ80M4，JCR77RF37-YEJB63M4，JCR77RF37-YEJB71M4，JCR77RF37-YEJB80M4，JCR77RF37-YP63M4，JCR77RF37-YP71M4，JCR77RF37-YP80M4，JCR77RF37-YPB63M4，JCR77RF37-YPB71M4，JCR77RF37-YPB80M4，JCR77RF37-YPE63M4，JCR77RF37-YPE71M4，JCR77RF37-YPE80M4，JCR77RF37-YS63M4，JCR77RF37-YS71M4，JCR77RF37-YS80M4，JCR77RF37-YVB63M4，JCR77RF37-YVB71M4，JCR77RF37-YVB80M4，JCR77RF37-YVP63M4，JCR77RF37-YVP71M4，JCR77RF37-YVP80M4，JCR77RF37-YVPEJ63M4，JCR77RF37-YVPEJ71M4，JCR77RF37-YVPEJ80M4，RW77RW37-Y63M4，RW77RW37-Y71M4，RW77RW37-Y80M4，RW77RWF37-Y0.12KW，RW77RWF37-Y0.18KW，RW77RWF37-Y0.25KW，RW77RWF37-Y0.37KW，RW77RWF37-Y0.55KW，RW77RWF37-Y63M4，RW77RWF37-Y71M4，RW77RWF37-Y80M4，RW77RWF37-YB63M4，RW77RWF37-YB71M4，RW77RWF37-YB80M4，RW77RWF37-YDP63M4，RW77RWF37-YDP71M4，RW77RWF37-YDP80M4，RW77RWF37-YE63M4，RW77RWF37-YE71M4，RW77RWF37-YE80M4，RW77RWF37-YEJ63M4，RW77RWF37-YEJ71M4，RW77RWF37-YEJ80M4，RW77RWF37-YEJB63M4，RW77RWF37-YEJB71M4，RW77RWF37-YEJB80M4，RW77RWF37-YP63M4，RW77RWF37-YP71M4，RW77RWF37-YP80M4，RW77RWF37-YPB63M4，RW77RWF37-YPB71M4，RW77RWF37-YPB80M4，RW77RWF37-YPE63M4，RW77RWF37-YPE71M4，RW77RWF37-YPE80M4，RW77RWF37-YS63M4，RW77RWF37-YS71M4，RW77RWF37-YS80M4，RW77RWF37-YVB63M4，RW77RWF37-YVB71M4，RW77RWF37-YVB80M4，RW77RWF37-YVP63M4，RW77RWF37-YVP71M4，RW77RWF37-YVP80M4，RW77RWF37-YVPEJ63M4，RW77RWF37-YVPEJ71M4，RW77RWF37-YVPEJ80M4，R79R39-Y63M4，R79R39-Y71M4，R79R39-Y80M4，R79RF39-Y0.12KW，R79RF39-Y0.18KW，R79RF39-Y0.25KW，R79RF39-Y0.39KW，R79RF39-Y0.55KW，R79RF39-Y63M4，R79RF39-Y71M4，R79RF39-Y80M4，R79RF39-YB63M4，R79RF39-YB71M4，R79RF39-YB80M4，R79RF39-YDP63M4，R79RF39-YDP71M4，R79RF39-YDP80M4，R79RF39-YE63M4，R79RF39-YE71M4，R79RF39-YE80M4，R79RF39-YEJ63M4，R79RF39-YEJ71M4，R79RF39-YEJ80M4，R79RF39-YEJB63M4，R79RF39-YEJB71M4，R79RF39-YEJB80M4，R79RF39-YP63M4，R79RF39-YP71M4，R79RF39-YP80M4，R79RF39-YPB63M4，R79RF39-YPB71M4，R79RF39-YPB80M4，R79RF39-YPE63M4，R79RF39-YPE71M4，R79RF39-YPE80M4，R79RF39-YS63M4，R79RF39-YS71M4，R79RF39-YS80M4，R79RF39-YVB63M4，R79RF39-YVB71M4，R79RF39-YVB80M4，R79RF39-YVP63M4，R79RF39-YVP71M4，R79RF39-YVP80M4，R79RF39-YVPEJ63M4，R79RF39-YVPEJ71M4，R79RF39-YVPEJ80M4。
