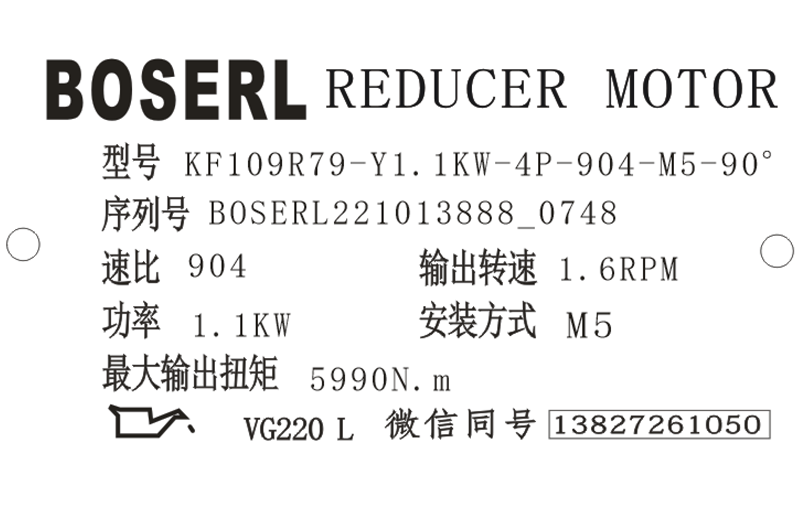

KF109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KF109R79減速機選型樣本。

KF109R79-Y1.1KW-4P-904-M5-90°

KF/R：系列代號

109/79：減速機規格代號

Y：電機

1.1KW：電機功率

4P：電機級數

904：減速機傳動比

M5：減速機安裝位置

90°：接線盒位置

KF109R79減速機電機安裝方法：

KF109R79減速機電機須由熟悉安全條例及國家法規的專業人員安裝和使用。齒輪減速電機

按照當?shù)匾?guī)定，電機安裝和操作場所應配備必要的安全防護設備，以避免意外事故。安裝地點請優先選擇符合下列條件的地方：容易做檢查的地方，并盡可能是干燥通風的地方；塵埃少且離爐等熱源較遠的地方。

KF109R79減速機電機接地：為了防止漏電等事故，根據電氣工作物規定，客戶使用前須將線盒內的接地螺釘與地線導通，如EN50014標準的表3所示。

KF109R79減速機電機垂直安裝，轉軸朝下時，必須有防護下落物體和液體的防護罩。確保電機防護等級與環境和氣候條件相匹配，如確保接線盒內不進水。

KF109R79減速機電機電網和電機端子之間的電纜接線必須根據銘牌上的額定電流，符合國家相關安裝標準或EN60204-1標準的要求。

KF109R79減速機電機只用于固定安裝。電機的電纜接頭應符合GB3836.8/EN 60079-15。電纜接頭的防護等級至少應等同于電機的防護等級。電纜應經機械防護后緊固在接線盒上，應符合GB3836.1/EN60079-0和當?shù)氐陌惭b標準的規定。

KF109R79減速機電機當使用連軸器連接輸出軸時，需安裝固定且務必使兩軸平行，底座需以安裝孔徑相適應的螺栓進行安裝，確保齒輪減速電機緊密牢固。

KF109R79減速機電機所有安裝在出力軸上的裝備必須輕裝于軸上，勿使用鐵錘及其它鈍器等敲擊出力軸，避免因安裝遇緊而引起軸承損壞。

KF109R79減速機電機滑輪、鏈輪或齒輪在裝配時盡量靠近出力軸承以減少彎曲應力。應使用不超過出力軸直徑6倍的鏈輪、皮帶輪等與出軸連接。使用時請配合H7公差使用，避免使用中發生異常噪音及軸面受損。

KF109R79減速機電機安裝完成后，可以在出力軸表面涂上適當?shù)姆冷P油或防銹漆以保護出力軸避免生銹。根據電源電壓，選擇適合的接線方式接好電機線盒內引線，接線盒內接錯線會導致電機燒毀。要根據電機銘牌上額定電流，建議5A/mm2的電流密度選擇合適尺寸電纜線給電機供電。

KF109R79減速機電機使用變頻器給帶剎車功能的齒輪電機供電時，需將剎車線(黃色）單獨提供交流220V供電，供電應與齒輪減速電機供電同步。直角減速機

KF109R79減速機電機溫度高解決方法：

負載過大/頻繁啟停，選擇大容量電機或減輕負載；

風道阻塞，清除風道油垢；

環境溫度增高，太陽下暴曬/附近有其它高溫?zé)嵩?，?yīng)采用遮陽或降溫措施；

電機缺相運行，電源接觸不良，修復觸點及電源線路；

電機缺相運行，線圈斷路，更換定子線圈；

繞組市間或相間短路，電流猛增，更換定子線圈；

電源電壓波動超10%:電流超標，采用穩壓措施，或選用大容量電機；

接法錯誤，Y接法與△接法用反，接法更正；

定轉子擦，更換電機；

轉子斷條更換轉子。伺服電機減速機

KF109R79減速電機型號：

YQKF107R77-Y100M4，YQKF107R77-Y112M4，YQKF107R77-Y132M4，YQKF107R77-Y63M4，YQKF107R77-Y71M4，YQKF107R77-Y80M4，YQKF107R77-Y90M4，YQKF107RF77-Y0.12KWF，YQKF107RF77-Y0.18KWF，YQKF107RF77-Y0.25KWF，YQKF107RF77-Y0.37KWF，YQKF107RF77-Y0.55KWF，YQKF107RF77-Y0.75KWF，YQKF107RF77-Y1.1KWF，YQKF107RF77-Y1.5KWF，YQKF107RF77-Y100M4，YQKF107RF77-Y112M4，YQKF107RF77-Y132M4，YQKF107RF77-Y2.2KWF，YQKF107RF77-Y3KWF，YQKF107RF77-Y4KWF，YQKF107RF77-Y5.5KWF，YQKF107RF77-Y63M4，YQKF107RF77-Y7.5KWF，YQKF107RF77-Y71M4，YQKF107RF77-Y80M4，YQKF107RF77-Y90M4，YQKF107RF77-YB100L4，YQKF107RF77-YB112M4，YQKF107RF77-YB132M4，YQKF107RF77-YB63M4，YQKF107RF77-YB71M4，YQKF107RF77-YB80M4，YQKF107RF77-YB90S4，YQKF107RF77-YDP100L4，YQKF107RF77-YDP112M4，YQKF107RF77-YDP132M4，YQKF107RF77-YDP63M4，YQKF107RF77-YDP71M4，YQKF107RF77-YDP80M4，YQKF107RF77-YDP90S4，YQKF107RF77-YE100L4，YQKF107RF77-YE112M4，YQKF107RF77-YE132M4，YQKF107RF77-YE63M4，YQKF107RF77-YE71M4，YQKF107RF77-YE80M4，YQKF107RF77-YE90S4，YQKF107RF77-YEJ100L4，YQKF107RF77-YEJ112M4，YQKF107RF77-YEJ132M4，YQKF107RF77-YEJ63M4，YQKF107RF77-YEJ71M4，YQKF107RF77-YEJ80M4，YQKF107RF77-YEJ90S4，YQKF107RF77-YEJB100L4，YQKF107RF77-YEJB112M4，YQKF107RF77-YEJB132M4，YQKF107RF77-YEJB63M4，YQKF107RF77-YEJB71M4，YQKF107RF77-YEJB80M4，YQKF107RF77-YEJB90S4，YQKF107RF77-YP100L4，YQKF107RF77-YP112M4，YQKF107RF77-YP132M4，YQKF107RF77-YP63M4，YQKF107RF77-YP71M4，YQKF107RF77-YP80M4，YQKF107RF77-YP90S4，YQKF107RF77-YPB100L4，YQKF107RF77-YPB112M4，YQKF107RF77-YPB132M4，YQKF107RF77-YPB63M4，YQKF107RF77-YPB71M4，YQKF107RF77-YPB80M4，YQKF107RF77-YPB90S4，YQKF107RF77-YPE100L4，YQKF107RF77-YPE112M4，YQKF107RF77-YPE132M4，YQKF107RF77-YPE63M4，YQKF107RF77-YPE71M4，YQKF107RF77-YPE80M4，YQKF107RF77-YPE90S4，YQKF107RF77-YS100L4，YQKF107RF77-YS112M4，YQKF107RF77-YS132M4，YQKF107RF77-YS63M4，YQKF107RF77-YS71M4，YQKF107RF77-YS80M4，YQKF107RF77-YS90S4，YQKF107RF77-YVB100L4，YQKF107RF77-YVB112M4，YQKF107RF77-YVB132M4，YQKF107RF77-YVB63M4，YQKF107RF77-YVB71M4，YQKF107RF77-YVB80M4，YQKF107RF77-YVB90S4，YQKF107RF77-YVP100L4，YQKF107RF77-YVP112M4，YQKF107RF77-YVP132M4，YQKF107RF77-YVP63M4，YQKF107RF77-YVP71M4，YQKF107RF77-YVP80M4，YQKF107RF77-YVP90S4，YQKF107RF77-YVPEJ100L4，YQKF107RF77-YVPEJ112M4，YQKF107RF77-YVPEJ132M4，YQKF107RF77-YVPEJ63M4，YQKF107RF77-YVPEJ71M4，YQKF107RF77-YVPEJ80M4，YQKF107RF77-YVPEJ90S4，AKF107R77-Y100M4，AKF107R77-Y112M4，AKF107R77-Y132M4，AKF107R77-Y63M4，AKF107R77-Y71M4，AKF107R77-Y80M4，AKF107R77-Y90M4，AKF107RF77-Y0.12KWF，AKF107RF77-Y0.18KWF，AKF107RF77-Y0.25KWF，AKF107RF77-Y0.37KWF，AKF107RF77-Y0.55KWF，AKF107RF77-Y0.75KWF，AKF107RF77-Y1.1KWF，AKF107RF77-Y1.5KWF，AKF107RF77-Y100M4，AKF107RF77-Y112M4，AKF107RF77-Y132M4，AKF107RF77-Y2.2KWF，AKF107RF77-Y3KWF，AKF107RF77-Y4KWF，AKF107RF77-Y5.5KWF，AKF107RF77-Y63M4，AKF107RF77-Y7.5KWF，AKF107RF77-Y71M4，AKF107RF77-Y80M4，AKF107RF77-Y90M4，AKF107RF77-YB100L4，AKF107RF77-YB112M4，AKF107RF77-YB132M4，AKF107RF77-YB63M4，AKF107RF77-YB71M4，AKF107RF77-YB80M4，AKF107RF77-YB90S4，AKF107RF77-YDP100L4，AKF107RF77-YDP112M4，AKF107RF77-YDP132M4，AKF107RF77-YDP63M4，AKF107RF77-YDP71M4，AKF107RF77-YDP80M4，AKF107RF77-YDP90S4，AKF107RF77-YE100L4，AKF107RF77-YE112M4，AKF107RF77-YE132M4，AKF107RF77-YE63M4，AKF107RF77-YE71M4，AKF107RF77-YE80M4，AKF107RF77-YE90S4，AKF107RF77-YEJ100L4，AKF107RF77-YEJ112M4，AKF107RF77-YEJ132M4，AKF107RF77-YEJ63M4，AKF107RF77-YEJ71M4，AKF107RF77-YEJ80M4，AKF107RF77-YEJ90S4，AKF107RF77-YEJB100L4，AKF107RF77-YEJB112M4，AKF107RF77-YEJB132M4，AKF107RF77-YEJB63M4，AKF107RF77-YEJB71M4，AKF107RF77-YEJB80M4，AKF107RF77-YEJB90S4，AKF107RF77-YP100L4，AKF107RF77-YP112M4，AKF107RF77-YP132M4，AKF107RF77-YP63M4，AKF107RF77-YP71M4，AKF107RF77-YP80M4，AKF107RF77-YP90S4，AKF107RF77-YPB100L4，AKF107RF77-YPB112M4，AKF107RF77-YPB132M4，AKF107RF77-YPB63M4，AKF107RF77-YPB71M4，AKF107RF77-YPB80M4，AKF107RF77-YPB90S4，AKF107RF77-YPE100L4，AKF107RF77-YPE112M4，AKF107RF77-YPE132M4，AKF107RF77-YPE63M4，AKF107RF77-YPE71M4，AKF107RF77-YPE80M4，AKF107RF77-YPE90S4，AKF107RF77-YS100L4，AKF107RF77-YS112M4，AKF107RF77-YS132M4，AKF107RF77-YS63M4，AKF107RF77-YS71M4，AKF107RF77-YS80M4，AKF107RF77-YS90S4，AKF107RF77-YVB100L4，AKF107RF77-YVB112M4，AKF107RF77-YVB132M4，AKF107RF77-YVB63M4，AKF107RF77-YVB71M4，AKF107RF77-YVB80M4，AKF107RF77-YVB90S4，AKF107RF77-YVP100L4，AKF107RF77-YVP112M4，AKF107RF77-YVP132M4，AKF107RF77-YVP63M4，AKF107RF77-YVP71M4，AKF107RF77-YVP80M4，AKF107RF77-YVP90S4，AKF107RF77-YVPEJ100L4，AKF107RF77-YVPEJ112M4，AKF107RF77-YVPEJ132M4，AKF107RF77-YVPEJ63M4，AKF107RF77-YVPEJ71M4，AKF107RF77-YVPEJ80M4，AKF107RF77-YVPEJ90S4，SKF107R77-Y100M4，SKF107R77-Y112M4，SKF107R77-Y132M4，SKF107R77-Y63M4，SKF107R77-Y71M4，SKF107R77-Y80M4，SKF107R77-Y90M4，SKF107RF77-Y0.12KWF，SKF107RF77-Y0.18KWF，SKF107RF77-Y0.25KWF，SKF107RF77-Y0.37KWF，SKF107RF77-Y0.55KWF，SKF107RF77-Y0.75KWF，SKF107RF77-Y1.1KWF，SKF107RF77-Y1.5KWF，SKF107RF77-Y100M4，SKF107RF77-Y112M4，SKF107RF77-Y132M4，SKF107RF77-Y2.2KWF，SKF107RF77-Y3KWF，SKF107RF77-Y4KWF，SKF107RF77-Y5.5KWF，SKF107RF77-Y63M4，SKF107RF77-Y7.5KWF，SKF107RF77-Y71M4，SKF107RF77-Y80M4，SKF107RF77-Y90M4，SKF107RF77-YB100L4，SKF107RF77-YB112M4，SKF107RF77-YB132M4，SKF107RF77-YB63M4，SKF107RF77-YB71M4，SKF107RF77-YB80M4，SKF107RF77-YB90S4，SKF107RF77-YDP100L4，SKF107RF77-YDP112M4，SKF107RF77-YDP132M4，SKF107RF77-YDP63M4，SKF107RF77-YDP71M4，SKF107RF77-YDP80M4，SKF107RF77-YDP90S4，SKF107RF77-YE100L4，SKF107RF77-YE112M4，SKF107RF77-YE132M4，SKF107RF77-YE63M4，SKF107RF77-YE71M4，SKF107RF77-YE80M4，SKF107RF77-YE90S4，SKF107RF77-YEJ100L4，SKF107RF77-YEJ112M4，SKF107RF77-YEJ132M4，SKF107RF77-YEJ63M4，SKF107RF77-YEJ71M4，SKF107RF77-YEJ80M4，SKF107RF77-YEJ90S4，SKF107RF77-YEJB100L4，SKF107RF77-YEJB112M4，SKF107RF77-YEJB132M4，SKF107RF77-YEJB63M4，SKF107RF77-YEJB71M4，SKF107RF77-YEJB80M4，SKF107RF77-YEJB90S4，SKF107RF77-YP100L4，SKF107RF77-YP112M4，SKF107RF77-YP132M4，SKF107RF77-YP63M4，SKF107RF77-YP71M4，SKF107RF77-YP80M4，SKF107RF77-YP90S4，SKF107RF77-YPB100L4，SKF107RF77-YPB112M4，SKF107RF77-YPB132M4，SKF107RF77-YPB63M4，SKF107RF77-YPB71M4，SKF107RF77-YPB80M4，SKF107RF77-YPB90S4，SKF107RF77-YPE100L4，SKF107RF77-YPE112M4，SKF107RF77-YPE132M4，SKF107RF77-YPE63M4，SKF107RF77-YPE71M4，SKF107RF77-YPE80M4，SKF107RF77-YPE90S4，SKF107RF77-YS100L4，SKF107RF77-YS112M4，SKF107RF77-YS132M4，SKF107RF77-YS63M4，SKF107RF77-YS71M4，SKF107RF77-YS80M4，SKF107RF77-YS90S4，SKF107RF77-YVB100L4，SKF107RF77-YVB112M4，SKF107RF77-YVB132M4，SKF107RF77-YVB63M4，SKF107RF77-YVB71M4，SKF107RF77-YVB80M4，SKF107RF77-YVB90S4，SKF107RF77-YVP100L4，SKF107RF77-YVP112M4，SKF107RF77-YVP132M4，SKF107RF77-YVP63M4，SKF107RF77-YVP71M4，SKF107RF77-YVP80M4，SKF107RF77-YVP90S4，SKF107RF77-YVPEJ100L4，SKF107RF77-YVPEJ112M4，SKF107RF77-YVPEJ132M4，SKF107RF77-YVPEJ63M4，SKF107RF77-YVPEJ71M4，SKF107RF77-YVPEJ80M4，SKF107RF77-YVPEJ90S4，XDKF107R77-Y100M4，XDKF107R77-Y112M4，XDKF107R77-Y132M4，XDKF107R77-Y63M4，XDKF107R77-Y71M4，XDKF107R77-Y80M4，XDKF107R77-Y90M4，XDKF107RF77-Y0.12KWF，XDKF107RF77-Y0.18KWF，XDKF107RF77-Y0.25KWF，XDKF107RF77-Y0.37KWF，XDKF107RF77-Y0.55KWF，XDKF107RF77-Y0.75KWF，XDKF107RF77-Y1.1KWF，XDKF107RF77-Y1.5KWF，XDKF107RF77-Y100M4，XDKF107RF77-Y112M4，XDKF107RF77-Y132M4，XDKF107RF77-Y2.2KWF，XDKF107RF77-Y3KWF，XDKF107RF77-Y4KWF，XDKF107RF77-Y5.5KWF，XDKF107RF77-Y63M4，XDKF107RF77-Y7.5KWF，XDKF107RF77-Y71M4，XDKF107RF77-Y80M4，XDKF107RF77-Y90M4，XDKF107RF77-YB100L4，XDKF107RF77-YB112M4，XDKF107RF77-YB132M4，XDKF107RF77-YB63M4，XDKF107RF77-YB71M4，XDKF107RF77-YB80M4，XDKF107RF77-YB90S4，XDKF107RF77-YDP100L4，XDKF107RF77-YDP112M4，XDKF107RF77-YDP132M4，XDKF107RF77-YDP63M4，XDKF107RF77-YDP71M4，XDKF107RF77-YDP80M4，XDKF107RF77-YDP90S4，XDKF107RF77-YE100L4，XDKF107RF77-YE112M4，XDKF107RF77-YE132M4，XDKF107RF77-YE63M4，XDKF107RF77-YE71M4，XDKF107RF77-YE80M4，XDKF107RF77-YE90S4，XDKF107RF77-YEJ100L4，XDKF107RF77-YEJ112M4，XDKF107RF77-YEJ132M4，XDKF107RF77-YEJ63M4，XDKF107RF77-YEJ71M4，XDKF107RF77-YEJ80M4，XDKF107RF77-YEJ90S4，XDKF107RF77-YEJB100L4，XDKF107RF77-YEJB112M4，XDKF107RF77-YEJB132M4，XDKF107RF77-YEJB63M4，XDKF107RF77-YEJB71M4，XDKF107RF77-YEJB80M4，XDKF107RF77-YEJB90S4，XDKF107RF77-YP100L4，XDKF107RF77-YP112M4，XDKF107RF77-YP132M4，XDKF107RF77-YP63M4，XDKF107RF77-YP71M4，XDKF107RF77-YP80M4，XDKF107RF77-YP90S4，XDKF107RF77-YPB100L4，XDKF107RF77-YPB112M4，XDKF107RF77-YPB132M4，XDKF107RF77-YPB63M4，XDKF107RF77-YPB71M4，XDKF107RF77-YPB80M4，XDKF107RF77-YPB90S4，XDKF107RF77-YPE100L4，XDKF107RF77-YPE112M4，XDKF107RF77-YPE132M4，XDKF107RF77-YPE63M4，XDKF107RF77-YPE71M4，XDKF107RF77-YPE80M4，XDKF107RF77-YPE90S4，XDKF107RF77-YS100L4，XDKF107RF77-YS112M4，XDKF107RF77-YS132M4，XDKF107RF77-YS63M4，XDKF107RF77-YS71M4，XDKF107RF77-YS80M4，XDKF107RF77-YS90S4，XDKF107RF77-YVB100L4，XDKF107RF77-YVB112M4，XDKF107RF77-YVB132M4，XDKF107RF77-YVB63M4，XDKF107RF77-YVB71M4，XDKF107RF77-YVB80M4，XDKF107RF77-YVB90S4，XDKF107RF77-YVP100L4，XDKF107RF77-YVP112M4，XDKF107RF77-YVP132M4，XDKF107RF77-YVP63M4，XDKF107RF77-YVP71M4，XDKF107RF77-YVP80M4，XDKF107RF77-YVP90S4，XDKF107RF77-YVPEJ100L4，XDKF107RF77-YVPEJ112M4，XDKF107RF77-YVPEJ132M4，XDKF107RF77-YVPEJ63M4，XDKF107RF77-YVPEJ71M4，XDKF107RF77-YVPEJ80M4，XDKF107RF77-YVPEJ90S4，WKF107R77-Y100M4，WKF107R77-Y112M4，WKF107R77-Y132M4，WKF107R77-Y63M4，WKF107R77-Y71M4，WKF107R77-Y80M4，WKF107R77-Y90M4，WKF107RF77-Y0.12KWF，WKF107RF77-Y0.18KWF，WKF107RF77-Y0.25KWF，WKF107RF77-Y0.37KWF，WKF107RF77-Y0.55KWF，WKF107RF77-Y0.75KWF，WKF107RF77-Y1.1KWF，WKF107RF77-Y1.5KWF，WKF107RF77-Y100M4，WKF107RF77-Y112M4，WKF107RF77-Y132M4，WKF107RF77-Y2.2KWF，WKF107RF77-Y3KWF，WKF107RF77-Y4KWF，WKF107RF77-Y5.5KWF，WKF107RF77-Y63M4，WKF107RF77-Y7.5KWF，WKF107RF77-Y71M4，WKF107RF77-Y80M4，WKF107RF77-Y90M4，WKF107RF77-YB100L4，WKF107RF77-YB112M4，WKF107RF77-YB132M4，WKF107RF77-YB63M4，WKF107RF77-YB71M4，WKF107RF77-YB80M4，WKF107RF77-YB90S4，WKF107RF77-YDP100L4，WKF107RF77-YDP112M4，WKF107RF77-YDP132M4，WKF107RF77-YDP63M4，WKF107RF77-YDP71M4，WKF107RF77-YDP80M4，WKF107RF77-YDP90S4，WKF107RF77-YE100L4，WKF107RF77-YE112M4，WKF107RF77-YE132M4，WKF107RF77-YE63M4，WKF107RF77-YE71M4，WKF107RF77-YE80M4，WKF107RF77-YE90S4，WKF107RF77-YEJ100L4，WKF107RF77-YEJ112M4，WKF107RF77-YEJ132M4，WKF107RF77-YEJ63M4，WKF107RF77-YEJ71M4，WKF107RF77-YEJ80M4，WKF107RF77-YEJ90S4，WKF107RF77-YEJB100L4，WKF107RF77-YEJB112M4，WKF107RF77-YEJB132M4，WKF107RF77-YEJB63M4，WKF107RF77-YEJB71M4，WKF107RF77-YEJB80M4，WKF107RF77-YEJB90S4，WKF107RF77-YP100L4，WKF107RF77-YP112M4，WKF107RF77-YP132M4，WKF107RF77-YP63M4，WKF107RF77-YP71M4，WKF107RF77-YP80M4，WKF107RF77-YP90S4，WKF107RF77-YPB100L4，WKF107RF77-YPB112M4，WKF107RF77-YPB132M4，WKF107RF77-YPB63M4，WKF107RF77-YPB71M4，WKF107RF77-YPB80M4，WKF107RF77-YPB90S4，WKF107RF77-YPE100L4，WKF107RF77-YPE112M4，WKF107RF77-YPE132M4，WKF107RF77-YPE63M4，WKF107RF77-YPE71M4，WKF107RF77-YPE80M4，WKF107RF77-YPE90S4，WKF107RF77-YS100L4，WKF107RF77-YS112M4，WKF107RF77-YS132M4，WKF107RF77-YS63M4，WKF107RF77-YS71M4，WKF107RF77-YS80M4，WKF107RF77-YS90S4，WKF107RF77-YVB100L4，WKF107RF77-YVB112M4，WKF107RF77-YVB132M4，WKF107RF77-YVB63M4，WKF107RF77-YVB71M4，WKF107RF77-YVB80M4，WKF107RF77-YVB90S4，WKF107RF77-YVP100L4，WKF107RF77-YVP112M4，WKF107RF77-YVP132M4，WKF107RF77-YVP63M4，WKF107RF77-YVP71M4，WKF107RF77-YVP80M4，WKF107RF77-YVP90S4，WKF107RF77-YVPEJ100L4，WKF107RF77-YVPEJ112M4，WKF107RF77-YVPEJ132M4，WKF107RF77-YVPEJ63M4，WKF107RF77-YVPEJ71M4，WKF107RF77-YVPEJ80M4，WKF107RF77-YVPEJ90S4，JCKF107R77-Y100M4，JCKF107R77-Y112M4，JCKF107R77-Y132M4，JCKF107R77-Y63M4，JCKF107R77-Y71M4，JCKF107R77-Y80M4，JCKF107R77-Y90M4，JCKF107RF77-Y0.12KWF，JCKF107RF77-Y0.18KWF，JCKF107RF77-Y0.25KWF，JCKF107RF77-Y0.37KWF，JCKF107RF77-Y0.55KWF，JCKF107RF77-Y0.75KWF，JCKF107RF77-Y1.1KWF，JCKF107RF77-Y1.5KWF，JCKF107RF77-Y100M4，JCKF107RF77-Y112M4，JCKF107RF77-Y132M4，JCKF107RF77-Y2.2KWF，JCKF107RF77-Y3KWF，JCKF107RF77-Y4KWF，JCKF107RF77-Y5.5KWF，JCKF107RF77-Y63M4，JCKF107RF77-Y7.5KWF，JCKF107RF77-Y71M4，JCKF107RF77-Y80M4，JCKF107RF77-Y90M4，JCKF107RF77-YB100L4，JCKF107RF77-YB112M4，JCKF107RF77-YB132M4，JCKF107RF77-YB63M4，JCKF107RF77-YB71M4，JCKF107RF77-YB80M4，JCKF107RF77-YB90S4，JCKF107RF77-YDP100L4，JCKF107RF77-YDP112M4，JCKF107RF77-YDP132M4，JCKF107RF77-YDP63M4，JCKF107RF77-YDP71M4，JCKF107RF77-YDP80M4，JCKF107RF77-YDP90S4，JCKF107RF77-YE100L4，JCKF107RF77-YE112M4，JCKF107RF77-YE132M4，JCKF107RF77-YE63M4，JCKF107RF77-YE71M4，JCKF107RF77-YE80M4，JCKF107RF77-YE90S4，JCKF107RF77-YEJ100L4，JCKF107RF77-YEJ112M4，JCKF107RF77-YEJ132M4，JCKF107RF77-YEJ63M4，JCKF107RF77-YEJ71M4，JCKF107RF77-YEJ80M4，JCKF107RF77-YEJ90S4，JCKF107RF77-YEJB100L4，JCKF107RF77-YEJB112M4，JCKF107RF77-YEJB132M4，JCKF107RF77-YEJB63M4，JCKF107RF77-YEJB71M4，JCKF107RF77-YEJB80M4，JCKF107RF77-YEJB90S4，JCKF107RF77-YP100L4，JCKF107RF77-YP112M4，JCKF107RF77-YP132M4，JCKF107RF77-YP63M4，JCKF107RF77-YP71M4，JCKF107RF77-YP80M4，JCKF107RF77-YP90S4，JCKF107RF77-YPB100L4，JCKF107RF77-YPB112M4，JCKF107RF77-YPB132M4，JCKF107RF77-YPB63M4，JCKF107RF77-YPB71M4，JCKF107RF77-YPB80M4，JCKF107RF77-YPB90S4，JCKF107RF77-YPE100L4，JCKF107RF77-YPE112M4，JCKF107RF77-YPE132M4，JCKF107RF77-YPE63M4，JCKF107RF77-YPE71M4，JCKF107RF77-YPE80M4，JCKF107RF77-YPE90S4，JCKF107RF77-YS100L4，JCKF107RF77-YS112M4，JCKF107RF77-YS132M4，JCKF107RF77-YS63M4，JCKF107RF77-YS71M4，JCKF107RF77-YS80M4，JCKF107RF77-YS90S4，JCKF107RF77-YVB100L4，JCKF107RF77-YVB112M4，JCKF107RF77-YVB132M4，JCKF107RF77-YVB63M4，JCKF107RF77-YVB71M4，JCKF107RF77-YVB80M4，JCKF107RF77-YVB90S4，JCKF107RF77-YVP100L4，JCKF107RF77-YVP112M4，JCKF107RF77-YVP132M4，JCKF107RF77-YVP63M4，JCKF107RF77-YVP71M4，JCKF107RF77-YVP80M4，JCKF107RF77-YVP90S4，JCKF107RF77-YVPEJ100L4，JCKF107RF77-YVPEJ112M4，JCKF107RF77-YVPEJ132M4，JCKF107RF77-YVPEJ63M4，JCKF107RF77-YVPEJ71M4，JCKF107RF77-YVPEJ80M4，JCKF107RF77-YVPEJ90S4，NKF107R77-Y100M4，NKF107R77-Y112M4，NKF107R77-Y132M4，NKF107R77-Y63M4，NKF107R77-Y71M4，NKF107R77-Y80M4，NKF107R77-Y90M4，NKF107RF77-Y0.12KWF，NKF107RF77-Y0.18KWF，NKF107RF77-Y0.25KWF，NKF107RF77-Y0.37KWF，NKF107RF77-Y0.55KWF，NKF107RF77-Y0.75KWF，NKF107RF77-Y1.1KWF，NKF107RF77-Y1.5KWF，NKF107RF77-Y100M4，NKF107RF77-Y112M4，NKF107RF77-Y132M4，NKF107RF77-Y2.2KWF，NKF107RF77-Y3KWF，NKF107RF77-Y4KWF，NKF107RF77-Y5.5KWF，NKF107RF77-Y63M4，NKF107RF77-Y7.5KWF，NKF107RF77-Y71M4，NKF107RF77-Y80M4，NKF107RF77-Y90M4，NKF107RF77-YB100L4，NKF107RF77-YB112M4，NKF107RF77-YB132M4，NKF107RF77-YB63M4，NKF107RF77-YB71M4，NKF107RF77-YB80M4，NKF107RF77-YB90S4，NKF107RF77-YDP100L4，NKF107RF77-YDP112M4，NKF107RF77-YDP132M4，NKF107RF77-YDP63M4，NKF107RF77-YDP71M4，NKF107RF77-YDP80M4，NKF107RF77-YDP90S4，NKF107RF77-YE100L4，NKF107RF77-YE112M4，NKF107RF77-YE132M4，NKF107RF77-YE63M4，NKF107RF77-YE71M4，NKF107RF77-YE80M4，NKF107RF77-YE90S4，NKF107RF77-YEJ100L4，NKF107RF77-YEJ112M4，NKF107RF77-YEJ132M4，NKF107RF77-YEJ63M4，NKF107RF77-YEJ71M4，NKF107RF77-YEJ80M4，NKF107RF77-YEJ90S4，NKF107RF77-YEJB100L4，NKF107RF77-YEJB112M4，NKF107RF77-YEJB132M4，NKF107RF77-YEJB63M4，NKF107RF77-YEJB71M4，NKF107RF77-YEJB80M4，NKF107RF77-YEJB90S4，NKF107RF77-YP100L4，NKF107RF77-YP112M4，NKF107RF77-YP132M4，NKF107RF77-YP63M4，NKF107RF77-YP71M4，NKF107RF77-YP80M4，NKF107RF77-YP90S4，NKF107RF77-YPB100L4，NKF107RF77-YPB112M4，NKF107RF77-YPB132M4，NKF107RF77-YPB63M4，NKF107RF77-YPB71M4，NKF107RF77-YPB80M4，NKF107RF77-YPB90S4，NKF107RF77-YPE100L4，NKF107RF77-YPE112M4，NKF107RF77-YPE132M4，NKF107RF77-YPE63M4，NKF107RF77-YPE71M4，NKF107RF77-YPE80M4，NKF107RF77-YPE90S4，NKF107RF77-YS100L4，NKF107RF77-YS112M4，NKF107RF77-YS132M4，NKF107RF77-YS63M4，NKF107RF77-YS71M4，NKF107RF77-YS80M4，NKF107RF77-YS90S4，NKF107RF77-YVB100L4，NKF107RF77-YVB112M4，NKF107RF77-YVB132M4，NKF107RF77-YVB63M4，NKF107RF77-YVB71M4，NKF107RF77-YVB80M4，NKF107RF77-YVB90S4，NKF107RF77-YVP100L4，NKF107RF77-YVP112M4，NKF107RF77-YVP132M4，NKF107RF77-YVP63M4，NKF107RF77-YVP71M4，NKF107RF77-YVP80M4，NKF107RF77-YVP90S4，NKF107RF77-YVPEJ100L4，NKF107RF77-YVPEJ112M4，NKF107RF77-YVPEJ132M4，NKF107RF77-YVPEJ63M4，NKF107RF77-YVPEJ71M4，NKF107RF77-YVPEJ80M4，NKF107RF77-YVPEJ90S4，KWF107RW77-Y100M4，KWF107RW77-Y112M4，KWF107RW77-Y132M4，KWF107RW77-Y63M4，KWF107RW77-Y71M4，KWF107RW77-Y80M4，KWF107RW77-Y90M4，KWF107RWF77-Y0.12KWF，KWF107RWF77-Y0.18KWF，KWF107RWF77-Y0.25KWF，KWF107RWF77-Y0.37KWF，KWF107RWF77-Y0.55KWF，KWF107RWF77-Y0.75KWF，KWF107RWF77-Y1.1KWF，KWF107RWF77-Y1.5KWF，KWF107RWF77-Y100M4，KWF107RWF77-Y112M4，KWF107RWF77-Y132M4，KWF107RWF77-Y2.2KWF，KWF107RWF77-Y3KWF，KWF107RWF77-Y4KWF，KWF107RWF77-Y5.5KWF，KWF107RWF77-Y63M4，KWF107RWF77-Y7.5KWF，KWF107RWF77-Y71M4，KWF107RWF77-Y80M4，KWF107RWF77-Y90M4，KWF107RWF77-YB100L4，KWF107RWF77-YB112M4，KWF107RWF77-YB132M4，KWF107RWF77-YB63M4，KWF107RWF77-YB71M4，KWF107RWF77-YB80M4，KWF107RWF77-YB90S4，KWF107RWF77-YDP100L4，KWF107RWF77-YDP112M4，KWF107RWF77-YDP132M4，KWF107RWF77-YDP63M4，KWF107RWF77-YDP71M4，KWF107RWF77-YDP80M4，KWF107RWF77-YDP90S4，KWF107RWF77-YE100L4，KWF107RWF77-YE112M4，KWF107RWF77-YE132M4，KWF107RWF77-YE63M4，KWF107RWF77-YE71M4，KWF107RWF77-YE80M4，KWF107RWF77-YE90S4，KWF107RWF77-YEJ100L4，KWF107RWF77-YEJ112M4，KWF107RWF77-YEJ132M4，KWF107RWF77-YEJ63M4，KWF107RWF77-YEJ71M4，KWF107RWF77-YEJ80M4，KWF107RWF77-YEJ90S4，KWF107RWF77-YEJB100L4，KWF107RWF77-YEJB112M4，KWF107RWF77-YEJB132M4，KWF107RWF77-YEJB63M4，KWF107RWF77-YEJB71M4，KWF107RWF77-YEJB80M4，KWF107RWF77-YEJB90S4，KWF107RWF77-YP100L4，KWF107RWF77-YP112M4，KWF107RWF77-YP132M4，KWF107RWF77-YP63M4，KWF107RWF77-YP71M4，KWF107RWF77-YP80M4，KWF107RWF77-YP90S4，KWF107RWF77-YPB100L4，KWF107RWF77-YPB112M4，KWF107RWF77-YPB132M4，KWF107RWF77-YPB63M4，KWF107RWF77-YPB71M4，KWF107RWF77-YPB80M4，KWF107RWF77-YPB90S4，KWF107RWF77-YPE100L4，KWF107RWF77-YPE112M4，KWF107RWF77-YPE132M4，KWF107RWF77-YPE63M4，KWF107RWF77-YPE71M4，KWF107RWF77-YPE80M4，KWF107RWF77-YPE90S4，KWF107RWF77-YS100L4，KWF107RWF77-YS112M4，KWF107RWF77-YS132M4，KWF107RWF77-YS63M4，KWF107RWF77-YS71M4，KWF107RWF77-YS80M4，KWF107RWF77-YS90S4，KWF107RWF77-YVB100L4，KWF107RWF77-YVB112M4，KWF107RWF77-YVB132M4，KWF107RWF77-YVB63M4，KWF107RWF77-YVB71M4，KWF107RWF77-YVB80M4，KWF107RWF77-YVB90S4，KWF107RWF77-YVP100L4，KWF107RWF77-YVP112M4，KWF107RWF77-YVP132M4，KWF107RWF77-YVP63M4，KWF107RWF77-YVP71M4，KWF107RWF77-YVP80M4，KWF107RWF77-YVP90S4，KWF107RWF77-YVPEJ100L4，KWF107RWF77-YVPEJ112M4，KWF107RWF77-YVPEJ132M4，KWF107RWF77-YVPEJ63M4，KWF107RWF77-YVPEJ71M4，KWF107RWF77-YVPEJ80M4，KWF107RWF77-YVPEJ90S4，KF109R79-Y100M4，KF109R79-Y112M4，KF109R79-Y132M4，KF109R79-Y63M4，KF109R79-Y71M4，KF109R79-Y80M4，KF109R79-Y90M4，KF109RF79-Y0.12KWF，KF109RF79-Y0.18KWF，KF109RF79-Y0.25KWF，KF109RF79-Y0.37KWF，KF109RF79-Y0.55KWF，KF109RF79-Y0.75KWF，KF109RF79-Y1.1KWF，KF109RF79-Y1.5KWF，KF109RF79-Y100M4，KF109RF79-Y112M4，KF109RF79-Y132M4，KF109RF79-Y2.2KWF，KF109RF79-Y3KWF，KF109RF79-Y4KWF，KF109RF79-Y5.5KWF，KF109RF79-Y63M4，KF109RF79-Y7.5KWF，KF109RF79-Y71M4，KF109RF79-Y80M4，KF109RF79-Y90M4，KF109RF79-YB100L4，KF109RF79-YB112M4，KF109RF79-YB132M4，KF109RF79-YB63M4，KF109RF79-YB71M4，KF109RF79-YB80M4，KF109RF79-YB90S4，KF109RF79-YDP100L4，KF109RF79-YDP112M4，KF109RF79-YDP132M4，KF109RF79-YDP63M4，KF109RF79-YDP71M4，KF109RF79-YDP80M4，KF109RF79-YDP90S4，KF109RF79-YE100L4，KF109RF79-YE112M4，KF109RF79-YE132M4，KF109RF79-YE63M4，KF109RF79-YE71M4，KF109RF79-YE80M4，KF109RF79-YE90S4，KF109RF79-YEJ100L4，KF109RF79-YEJ112M4，KF109RF79-YEJ132M4，KF109RF79-YEJ63M4，KF109RF79-YEJ71M4，KF109RF79-YEJ80M4，KF109RF79-YEJ90S4，KF109RF79-YEJB100L4，KF109RF79-YEJB112M4，KF109RF79-YEJB132M4，KF109RF79-YEJB63M4，KF109RF79-YEJB71M4，KF109RF79-YEJB80M4，KF109RF79-YEJB90S4，KF109RF79-YP100L4，KF109RF79-YP112M4，KF109RF79-YP132M4，KF109RF79-YP63M4，KF109RF79-YP71M4，KF109RF79-YP80M4，KF109RF79-YP90S4，KF109RF79-YPB100L4，KF109RF79-YPB112M4，KF109RF79-YPB132M4，KF109RF79-YPB63M4，KF109RF79-YPB71M4，KF109RF79-YPB80M4，KF109RF79-YPB90S4，KF109RF79-YPE100L4，KF109RF79-YPE112M4，KF109RF79-YPE132M4，KF109RF79-YPE63M4，KF109RF79-YPE71M4，KF109RF79-YPE80M4，KF109RF79-YPE90S4，KF109RF79-YS100L4，KF109RF79-YS112M4，KF109RF79-YS132M4，KF109RF79-YS63M4，KF109RF79-YS71M4，KF109RF79-YS80M4，KF109RF79-YS90S4，KF109RF79-YVB100L4，KF109RF79-YVB112M4，KF109RF79-YVB132M4，KF109RF79-YVB63M4，KF109RF79-YVB71M4，KF109RF79-YVB80M4，KF109RF79-YVB90S4，KF109RF79-YVP100L4，KF109RF79-YVP112M4，KF109RF79-YVP132M4，KF109RF79-YVP63M4，KF109RF79-YVP71M4，KF109RF79-YVP80M4，KF109RF79-YVP90S4，KF109RF79-YVPEJ100L4，KF109RF79-YVPEJ112M4，KF109RF79-YVPEJ132M4，KF109RF79-YVPEJ63M4，KF109RF79-YVPEJ71M4，KF109RF79-YVPEJ80M4，KF109RF79-YVPEJ90S4。
